Product Description

It is a new generation product and is the follow-up model of EPIPHOT TME300/200 metallographic microscope. It supports bright field, dark field, differential interference, fluorescence, simple polarization and other observation methods. It has compact structure, convenient operation, uniform illumination, and clear imaging. , Energy-saving, power-saving, durable and other features.

Easy to operate

The parts that often need to be manipulated are concentrated near the observer, that is, in front of the microscope. Such as: field diaphragm, aperture diaphragm, polarizer, analyzer, inspection board insertion and removal, and switching between bright and dark fields.

Compact structure, small footprint, vibration resistance, sturdiness and durability

The box-shaped structure is firm and durable; compared with TME300, it has a smaller footprint and can save about 1/3 of the space.

High optical performance, uniform lighting, energy saving and power saving

Adopting Nikon's unique CFI₆₀ optical system, not only can get a high contrast, clear bright field image, but also a dark field image with 3 times the brightness of the past; newly developed 1x and 40x objective lenses; eyepiece view The field number is up to 25mm, combined with the newly developed 1x objective lens, samples with a diameter of 25mm can be seen all at once; the illumination is uniform and the image is clear; the newly developed 12V50W halogen lamp illumination, its illumination brightness is completely comparable In the past, 12V100W halogen lamp lighting, and the electricity can be saved by half.

Photomicrography and image processing

Through the optional Nikon DS series digital camera, photomicrography can be carried out; the microscopic pictures taken can be observed and processed in two ways, respectively:

DS-L2

1. DS-L2 independent display controller (image data can be saved to U disk)

DS-U2

2. DS-U2 type computer is connected to the controller, the latter needs to be used with NIS Elements software

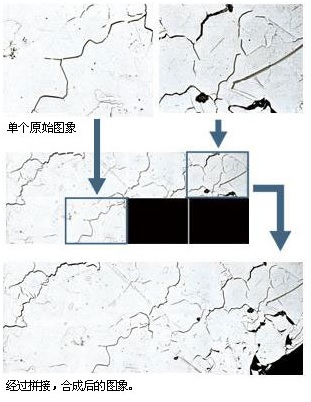

Use the functions in the NIS Elements software to realize seamless splicing of microscopic images;

Using the functions in the NIS Elements software, you can perform material analysis, such as grain size analysis and graphite spheroidization rate analysis of ductile iron.

Product Specification

Offers high stability, durability, and a smaller footprint than conventional models, as well as easy access to the stage handle, the nosepiece, the BF/DF change lever, and diaphragms, all located on the front side.

Compatible observation methods

Brightfield	Darkfield	Simple polarizing	DIC	Fluorescence
O	O	O	O	Δ

*DIA illuminator is available for transmitted light observation.
Δ: only available with Halogen Lamp and Fiber Illumination

Compatible illminators

LV-LH50PC 12V50W Halogen Lamp Illuminator
C-HGFI HG Precentered Fiber Illuminator (option)
LV-LL LED Lamphouse

Magnification module

1x/1.5x/2x

Compatible stages

MA2-SR Mechanical Stage (stroke: 50 x 50 mm)

	MA200
Main body	Focusing mechanism	Focusing nosepiece (Fixed stage) Coaxial coarse/fine adjustment knob (torque adjustable)
	Focusing mechanism	Coarse adjustment of 4.0 mm per rotation, fine adjustment of 0.1 mm per rotation
	Illumination	With flare prevention, Built in UV cut filter
		Field diaphragm: dialing continuous variable (centerable), Aperture diaphragm: dialing continuous variable (centerable)
		Filter: Double turret (ND16, ND4/GIF, NCB, Additional option available), Polarizing block (Selectable with or without 1/4 Plate)
		Fluorescence filter blocks: B/G/V/BV
		12V50W Halogen Lamp, C-HGFI HG Fiber Illuminator, LV-LL LED Lamphouse
	Light distribution	Eyepiece tube/Back port: 100/0, 55/45
Optics	CFI₆₀/CFI₆₀-2 system
Observation image	Surface Image
Observation method	Bright/Darkfield/Simple Polarizing/DIC/Epi-Fluorescence
Revolving nosepieces	LV-NU5I: Bright/Darkfield/DIC 5 position nosepiece, LV-NU5A: Motorized Bright/Darkfield/DIC 5 position nosepiece
Revolving nosepieces	MA-N7-I Brightfield 7 position nosepiece (Intelligent)
Stage	MA2-SR Mechanical Stage (X/Y flexible handle)
Stage	Dimension: 295×215 mm, Stroke: 50 mm×50 mm (with distance graduation), Standard accessory: ø22 universal specimen holder (with sample clip)
Trinocular eyepiece	Siedentopf interpupillary distance adjustment 50-75 mm
Power source	100-240 V, 50-60 Hz
Power consumption (max.)	1.2 A 75 W
Weight	Approx. 26 kg (depends on combination)
Options	Intermediate magnification	Turret (1×, 1.5×, 2×), Status detection (Output magnification information to main unit)
	Scale	MA2-GR Grain Reticle (ASTM E112-63 grain sizing numbers 1 to 8), Grid Reticle(20 lines, 0.5 mm)
	Scale	MA2-MR Scale Reticle (compatible with 5-100×, Read in um, Dialing System)

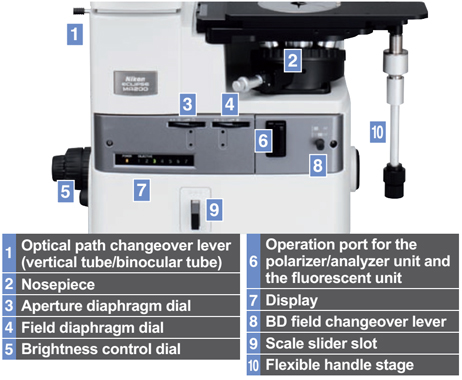

	Front Operation Delivers ease-of-use by placing all important controls at the front of MA200N. Quick Status Check Automatically detects the address of the objective lens currently in use and displays it on the main unit front panel. The observation position of the objective lens and sample can be checked easily from the microscope’s front panel.

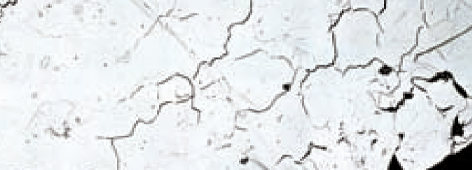

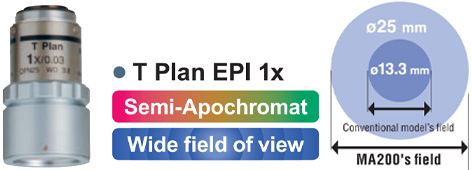

Evolved Optical Performance Provides a more ergonomic observation with clearer images. Super-wide field of view A sample with a diameter of just 25 mm can be observed in an one field of view by combining the ultra wide field of view eyepiece and 1x objective lens. Even Illumination Improved uniformity of illumination delivers clear images, especially for digital imaging. Combine images with the stitching feature Can combine up to eight images with uniform lighting and no seams.

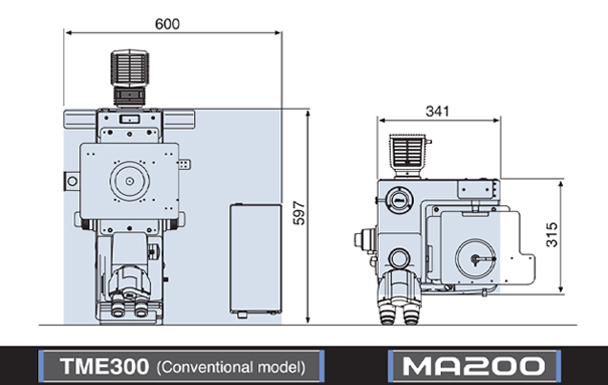

	Box Structure The unique box structure is 1/3 smaller than conventional models and offers improved durability. Compact structure with a depth of 315 mm A box shaped microscope, not only the width but also the depth is reduced dramatically: The foot print is only onethird of the conventional model! High stability and durability Reduced vibration during high-power observation, offering a highly rigid microscope.

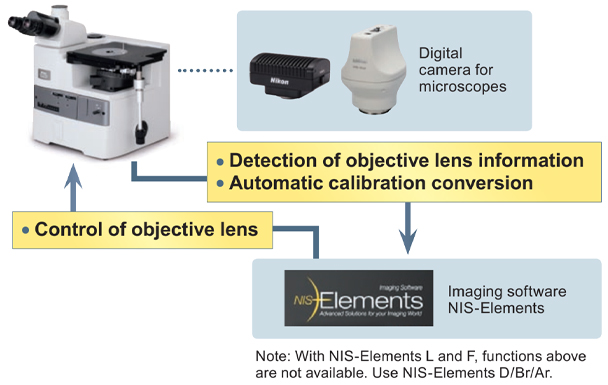

	Combinaation with Digital Camera The MA200 allows detection of information and control of objective lenses, enabling optimization of the conditions vital for image acquisition.

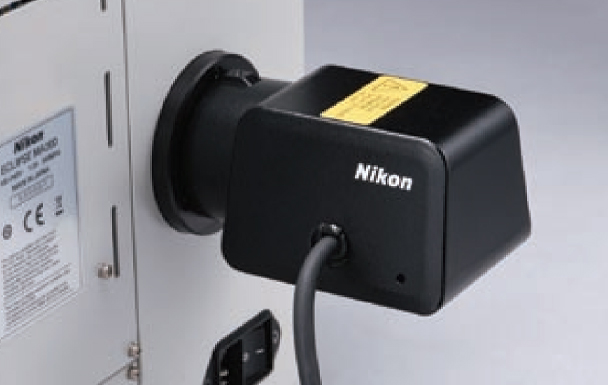

LV-LL LED Lamphouse	Illumination Expanded lineup Added a compact LED illuminator to the existing lineup. With the use of LED, Nikon illuminators are power saving and achieve long life.

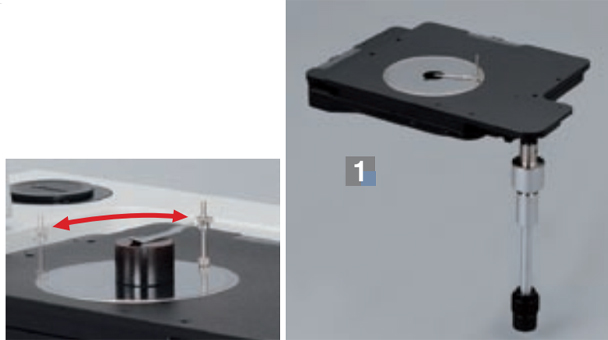

Accessories Stage Samples can be rotated by the stage clip. The stage delivers high durability needed to support heavy samples. MA-2 SR Stage	DIC Units Standard and high contrast type DIC prism are available to match needs of the sample. These prisms are effective for observation of minute step heights. MA2-PA Unit L-DIHC DIC Prism (High Contrast) L-DIC DIC Prism
	Nosepiece & Magnification Module Enables communication of objective lens position, magnification and intermediate magnification module information with the NIS-Elements image software. MA2-MC Magnification Module LV-NU5I Intelligent Universal Quintuple Nosepiece

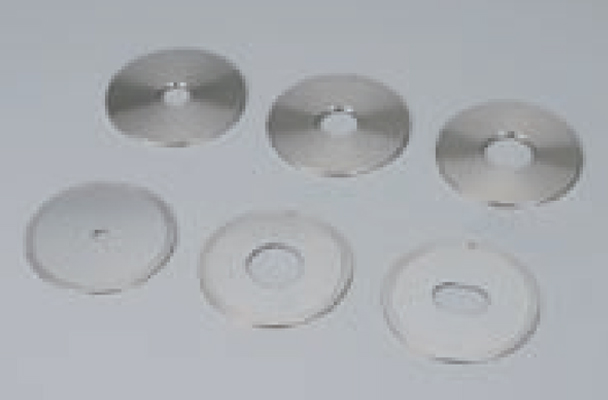

Holders A full lineup is available that correspond to a variety of sample shapes.

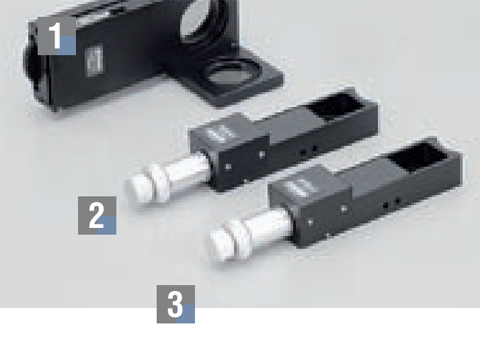

Polarizing Units Polarizing observation is effective for birefringence samples. MA2-PA unit is suitable for observation of aluminium. Single-action operation Links the attachment/relea of the analyzer/polarizer. MA2-PA Unit MA2-UPA Unit* MA2- P Plate *It is suitable for inspecting aluminium sample. Aluminium sample
Grain Size Reticle & Scale Overlays a pattern onto the observed image. The Grain Size Reticle is used for grain size analysis and complies with the JIS G0551 and ASTM E112 standards. The Scale displays a scale for each objective lens magnification. MA2-GR Grain Size Reticle JIS G0551/objective lense 10x (100× magnification) ASTM E112/objective lense 10x (100× magnification) MA2-MR Scale

Nikon's CFI₆₀ optical system, highly evaluated for its unique concept of high NA and long working distance, has achieved the apex in long working distance, chromatic aberration correction, and light weight.

Standard objective lenses
TU Plan Fluor Series

Enable brightfield, darkfield, simple polarizing, sensitive polarizing, differential interference, and epi-fluorescence observations with just one lens. Achieves superior chromatic aberration performance with long working distance for all magnifications to adapt to any application.

Model	Magnification	NA	Working Distance(mm)
TU Plan Fluor EPI (brightfield type)	5×	0.15	23.5
	10×	0.30	17.5
	20×	0.45	4.5
	50×	0.80	1.0
	100×	0.90	1.0
TU Plan Fluor BD (brightfield/ darkfield type)	5×	0.15	18.0
	10×	0.30	15.0
	20×	0.45	4.5
	50×	0.80	1.0
	100×	0.90	1.0

Long working distance objective lenses
TU Plan ELWD Series

With the phase Fresnel lenses, these objective lenses enable long working distances while offering higher level chromatic aberration correction than conventional objective lenses. This improves operability for samples with different heights.

Model	Magnification	NA	Working Distance(mm)
TU Plan EPI ELWD (brightfield type)	20×	0.4	19.0
	50×	0.6	11.0
	100×	0.8	4.5
TU Plan BD ELWD (brightfield/ darkfield type)	20×	0.4	19.0
	50×	0.6	11.0
	100×	0.8	4.5

Low-magnification objective lenses
T Plan EPI

Both clear observation using a conventional analyzer/polarizer and operability-oriented observation without the need of an analyzer/ polarizer are possible.

Model	Magnification	NA	Working Distance(mm)
T Plan EPI (brightfield type)	1×	0.0.3	3.8
T Plan EPI (brightfield type)	2.5×	0.075	6.5

Apochromatic objective lenses
TU Plan Apo Series

By using phase Fresnel lenses, these objective lenses achieve significantly longer operating distances while maintaining the superior chromatic aberration performance of apochromatic lenses.

Model	Magnification	NA	Working Distance(mm)
TU Plan Apo EPI (brightfield type)	50×	0.8	2.0
	100×	0.9	2.0
	150×	0.9	1.5
TU Plan Apo EPI (brightfield/ darkfield type)	50×	0.8	2.0
	100×	0.9	2.0
	150×	0.9	1.5

Other Lenses
Brightfield objective lense
CFI L Plan EPI 40x
A 40x objective lens is best for
metal analysis.
NA: 0.65 W.D.: 1.0 mm

Digital camera system for microscopes
DIGTAL SIGHT SERIES

Microscope camera

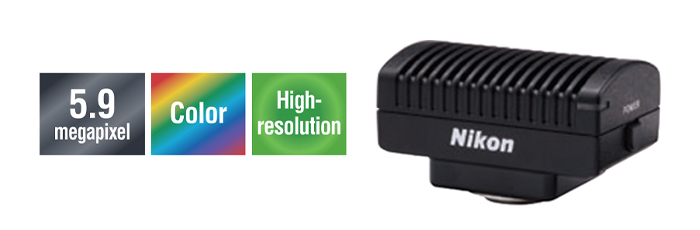

DS-Fi3
Three main features of the previous models, high-resolution, high sensitivity and low noise, and high-speed live display are offered in 1 camera.

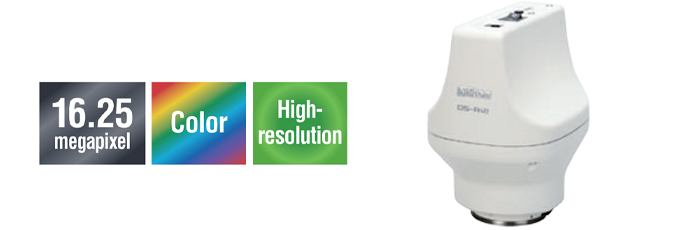

DS-Ri2
Capable of expressing images as is, this microscope digital camera offers high resolution, color reproduction, and frame rate.

Frame Rate	30 fps (1440×1024)	45 fps (1636×1088)
Max Recordable Pixels	2880×2048	2880×2048

Imaging software NIS-Elements Simply installing NIS-Elements L on a tablet PC enables setting and control of DS-Fi3/ DS-Ri2 microscope cameras, live image display, and image acquisition.

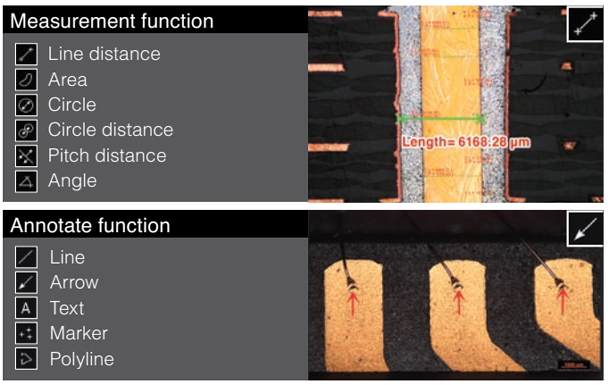

A wide variety of tools NIS-Elements L enables the conducting of simple measurements on images, with input of lines and comments. These can also be written onto and saved with the image, and measurement data can be output.
Scene Mode Ten camera setting patterns for optimal color reproduction and contrast for each microscope light source, observation method and type of sample, as well as custom settings, can be selected. Wafer/IC Metal, Ceramic/Plastic Circuit board Flat Panel Display
Image Stitching Stitches together images acquired from multiple fields of view to create one image.

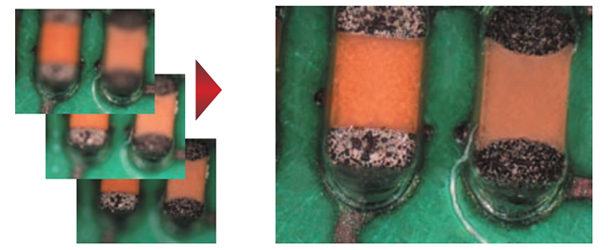

EDF (Extended Depth of Focus) Create a single, all-in-focus image from images of differing focus.
* See the "Digital Camera Digital Sight Series for Microscopes" brochure for details on Digital Sight features.

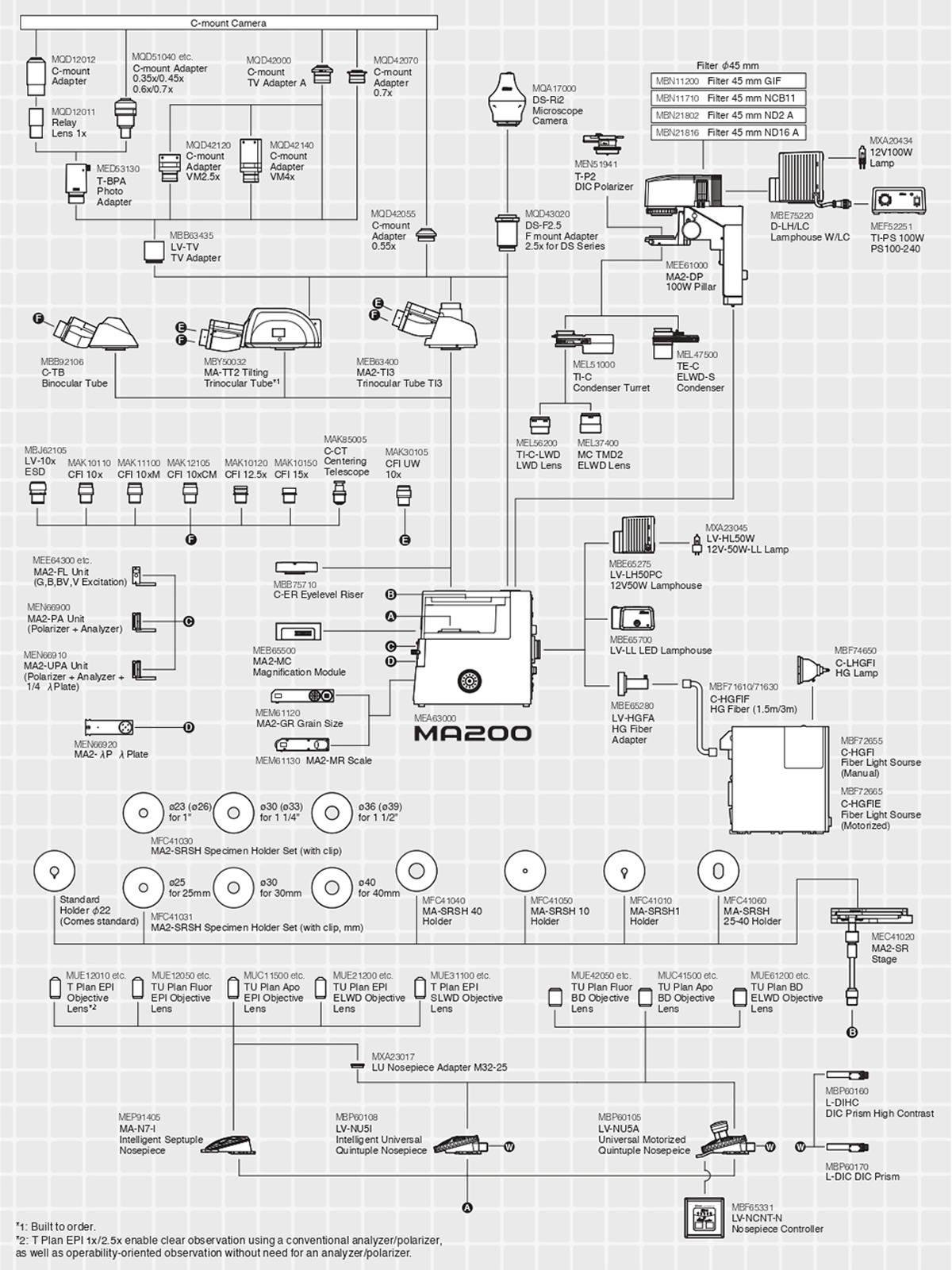

System Diagram (MA200)

MA200 Inverted Metallurgical Microscope
