Product Description
Measuring tool microscope
The lens is a wide-field full-upright image microscope.
Industrial use is most suitable for long working distance and same focus design.
As long as the eyepiece scoring (many types) is replaced, it can correspond to various measurement and inspection position measurement.
CCD and portable camera can be installed, with high scalability, and image observation can be done.
The mirror body is light and small, which is a system assembly, which is most suitable for installation in machinery or equipment.
MS-90 | MS-45 | MFS-1A | ZLS-90 | VZS-45 |
MFS-1B | KZS-1B | ZLS-45 | VS-45 | MFS |
Standard tube holder | Cross point lens tube holder | Micro-motion lens tube holder | PA lens tube holder |
MSS pedestal | MST pedestal | MES pedestal | DXY stand |
MG magnetic stand | MXS magnetic stand |
Various rulers
31-A | 31-B | 31-C | 31-D | 31-E |
31-F | 31-G | 31-H | 31-I | 31-J |
31-K |
Various lenses
The total magnification of matching is 10X~200X
10X | 15X | 20X | OSM-MF | |
1X 2X | 3X | 4X | 5X | 6X |
8X | 10X |
When using eyepiece 10X
Eyepiece OC.WFD 10X (standard) | ||||||||
---|---|---|---|---|---|---|---|---|
On objective | 1X | 2X | 3X | 4X | 5X | 6X | 8X | 10X |
Actual field of view MM | 20.0 | 10.0 | 6.5 | 5.0 | 4.0 | 3.5 | 2.5 | 2.0 |
Moving distance MM | 176 | 85 | 63 | 48 | 39 | 33 | 27 | 20 |
Total magnification | 10X | 20X | 30X | 40X | 50X | 60X | 80X | 100X |
Minimum 1 grid reading MM | 0.1 | 0.05 | 0.0333 | 0.025 | 0.02 | 0.0166 | 0.0125 | 0.01 |
When using eyepiece 20X
Eyepiece OC.WFD 20X (standard) | ||||||||
---|---|---|---|---|---|---|---|---|
On objective | 1X | 2X | 3X | 4X | 5X | 6X | 8X | 10X |
Actual field of view MM | 10.5 | 5.2 | 3.5 | 2.6 | 2.1 | 1.7 | 1.3 | 1.05 |
Moving distance MM | 176 | 85 | 63 | 48 | 39 | 33 | 27 | 20 |
Total magnification | 20X | 40X | 60X | 80X | 100X | 120X | 160X | 200X |
Minimum 1 grid reading MM | 0.1 | 0.05 | 0.0333 | 0.025 | 0.02 | 0.0166 | 0.0125 | 0.01 |

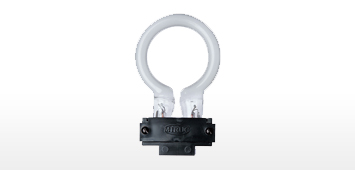

Various lighting devices
Diversified lighting equipment greatly increases the accuracy of inspection and measurement
