Product Description

As the most representative product of FT hardness tester, it has an overwhelming advantage to obtain a model with a highly estimated market rate. It is suitable for metal and scientific research hardness testing in various fields. It can be matched and upgraded from economical to highly automated models.

Product Feature

Ensure a clear measurement field of view
Japan's exclusive assembly process, selection of first-class accessories, combining optical and physical characteristics to achieve the most comfortable and excellent imaging effect, reduce fatigue, improve efficiency and the best choice for measurement accuracy.
International mainstream hardness specification
Comply with JIS B 7725, ASTM E-92, ISO 6507-2 and other specifications.
The body design is durable and beautiful
The high-rigidity body has been repeatedly verified for stability, and the special coating process can keep it as bright as new.

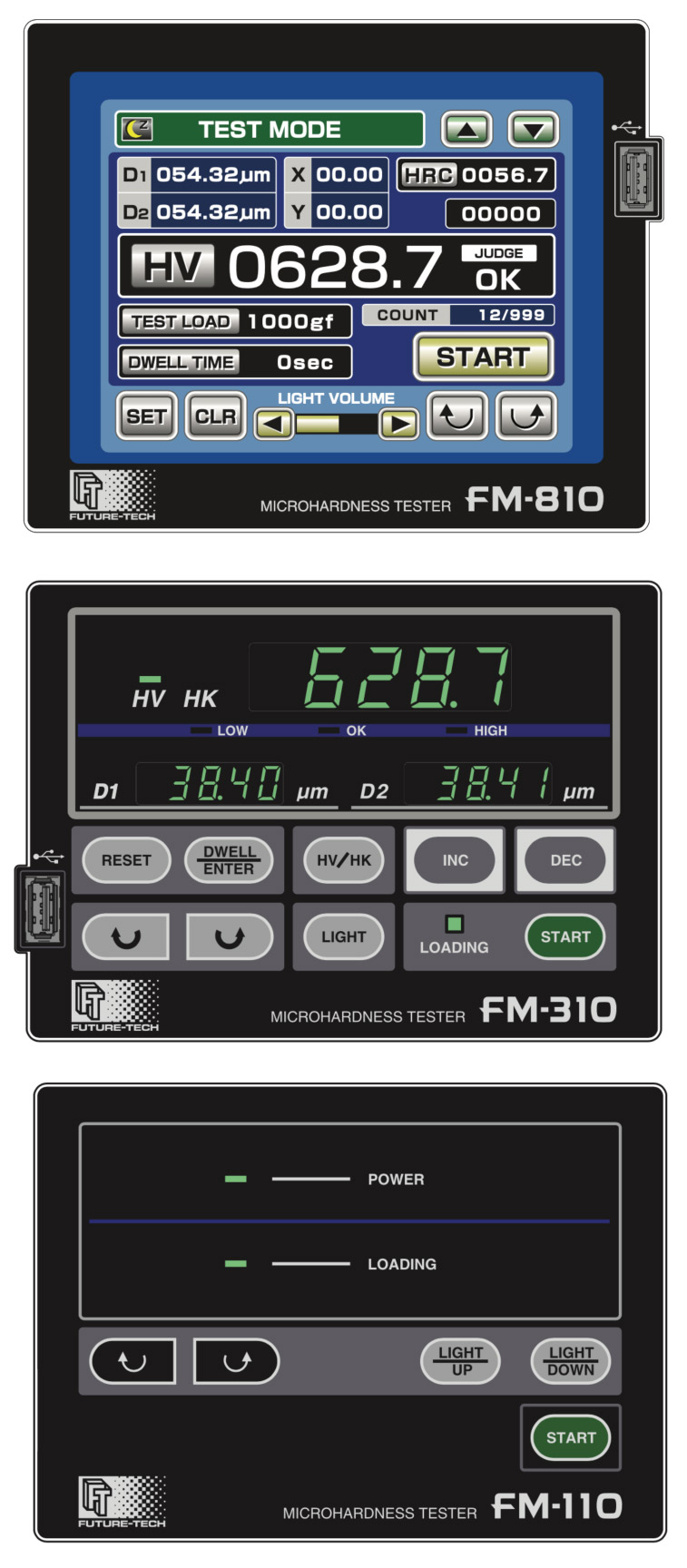

Intelligent operation unit (FV-810 type)
Full-color 7-inch LCD touch screen, highly integrated multi-function touch interface, with a variety of test methods, micro Vickers hardness / Knoop hardness / special load Brinell hardness / KC fracture toughness, etc.
Hardness comparison reference function (FV-810 type)
Built-in SAE-J417b, ASTM (E-140) hardness conversion function, providing reference values for different hardness.
Displacement accuracy (FV-810 type)
Optional digital display card, and XY coordinate system can be connected to the display panel through a connection.
Rich selection of observation magnification
Except for the standard configuration of two objective lenses, the FV series can support up to four objective lenses.
Shape correction function (FV-810 type)
Provide special functions such as national column correction and spherical correction.
A multi-purpose machine, covering the load range of micro Vickers and Vickers hardness
Two types of load matching are provided, and the suitable model can be selected according to requirements.
Upgrade automation system
The automatic displacement device, automatic indentation reading system, and hardness measurement software can be upgraded according to requirements.

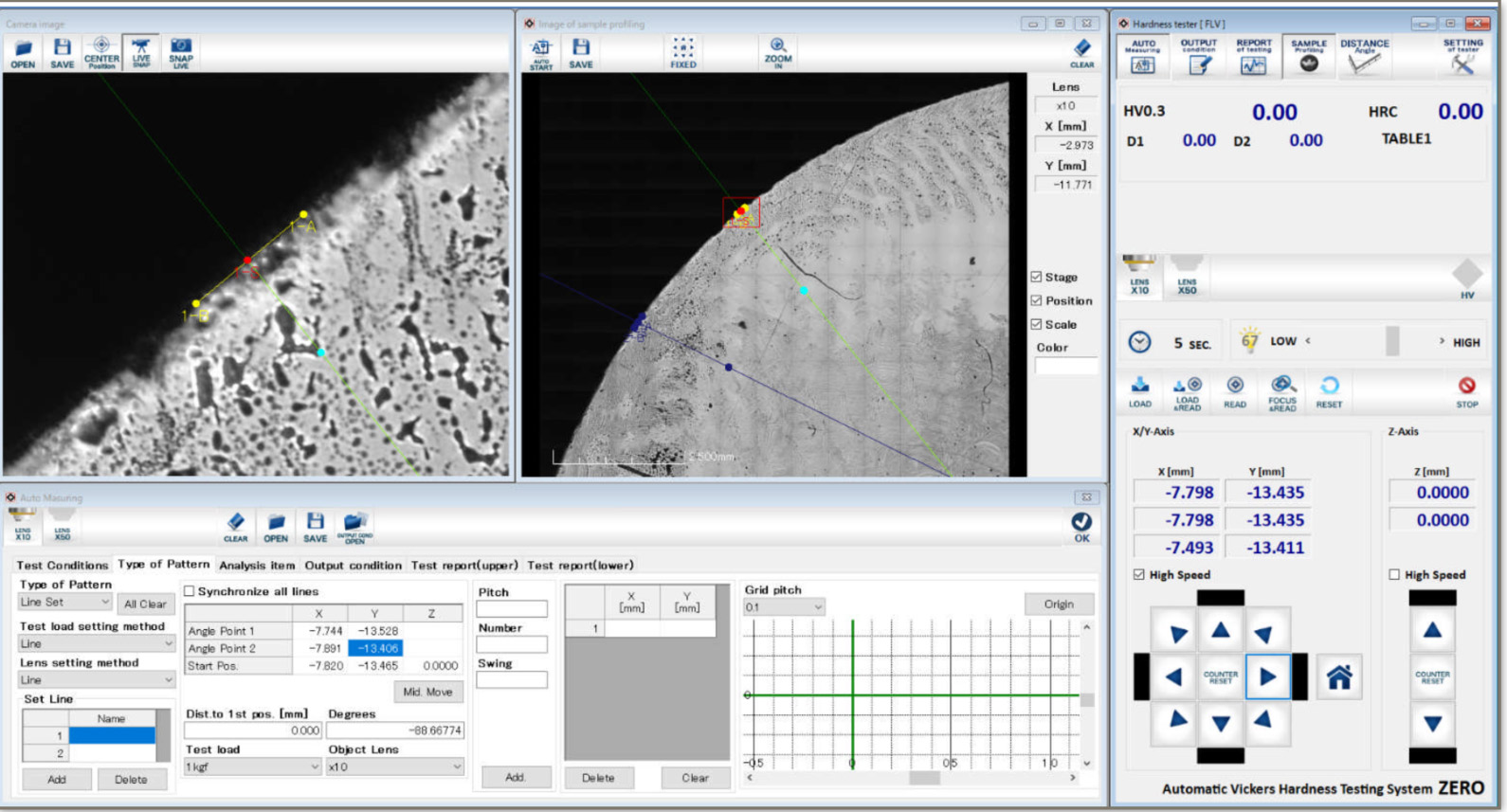

Upgradeable AR Vickers indentation automatic reading system
Configuration: 1.3 million CMOS image device, FT-ZERO hardness measurement software

Product Specification

project		FV-110e	FV-110	FV-310e	FV-310	FV-810e	FV-810
Test load	Ａ type	1, 2, 3, 5, 10, 20, 30, 50 kgf
Test load	B type	0.3, 0.5, 1, 3, 5, 10, 20, 30 kgf
Features		HV		HV/HK		HV/HK/HBS/HBW/KC fracture toughness function
Hardness conversion		-				According to SAE-J417b, ASTM (E-140) hardness conversion
Operation panel form/function		Film panel: start test button/light source adjustment/turret switch (110 type)		Film panel: start test key/light source adjustment/turret switch (310 type)/HV-HK switch/hardness display/D1, D2 value display/load holding time adjustment		LCD touch panel: start test button/light source adjustment/turret switch (810 type)/HV-HK switch/hardness display/D1,D2 value display/load holding time adjustment/data memory editing/load display/digital points Card coordinate data access/judgment value HI-OK-LOW/conversion value/sleep function/hardness curve graph/cylindricity and curved surface correction/self-diagnosis function/HBS/HBW/KC fracture toughness function/ sample thickness calculation
Load loading method/load speed		Automatic load-hold-release method / initial speed 120μm, load speed 60μm/sec (two-stage automatic transmission)
Load holding time		5-40 seconds		5-99 seconds
Focus method		Manual focus
Turret-lens switching mechanism		Manual	automatic	Manual	automatic	Manual	automatic
Indentation measurement		Manual read
Probe		Standard HV probe x1				Standard HV probe x1, HK and HB probes can be purchased (up to two probes can be installed)
eyepiece		10x eyepiece
Objective lens		Atype standard objective lens 10x/Btype standard objective lens 10x and 20x (up to three objective lenses can be installed)
Objective lens		Optional 5x, 40x, 50x
Measuring microscope	form	Mechanical split card/check meter		Electronic
	Maximum measuring length	Microscope magnification x100 field of view 800μm / magnification x200 field of view 400μm
	Minimum display unit	Minute card: 0.5μm		Digital display: 0.1μm (x100 times and x200 times)/0.01μm x400 times field of view
	Minimum measurement unit	Minute card: 0.1μm		Digital display: 0.1μm (x100 times and x200 times)/0.01μm x400 times field of view
Maximum sample height and depth		Maximum sample height: 210mm Maximum sample depth: 165mm
light source		LED light source (automatic dimming during testing)
Precision		According to JIS B-7725, ASTM E-92 and ISO 6507-2
output signal		USB (RS232C)
Equipment size/weight		W215xD517xH690mm/about 55kg (including tool box)
power supply		AC100~115V/AC240V(50/60HZ)
Standard accessories		HV probe, hardness standard film, dust cover, leveling foot, tool box, power cord, factory certificate, manual
