Product Description

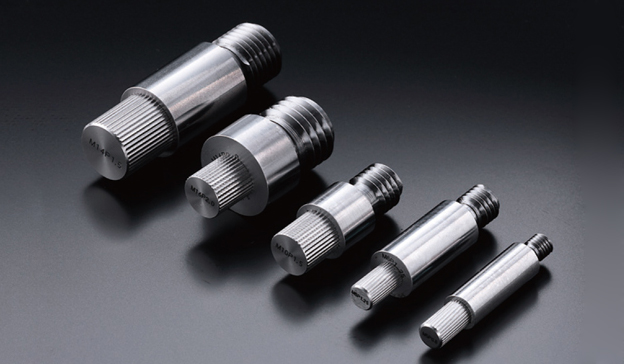

Thread position gauge series description
The fusion of the tooth gauge and the needle gauge, the threaded part is the plug gauge that passes through, and the hole position can be measured with high precision.
Features of thread position gauge
- The threaded part is the specification of the passing plug gauge, and the hole position can be checked at the same time.
- The straight angle can be confirmed through the gap between the end face of the needle gauge.
- The product material uses SKS3, HRC58 or above, with good wear resistance
- In order to prevent direct contact with the detection part, a screw-in movable handle is arranged above the position gauge (installation and disassembly are possible according to requirements).
- In order to ensure the client's peace of mind and trust, this product is accompanied by an inspection report.
Use case
 |
 |
 |
| Use three dimensions for position determination | Use a dial indicator for position determination | Use vernier calipers to measure the pitch of holes |
Thread position gauge accuracy
- Depending on the lock, the screw thread will generate centripetal force to ensure that the position gauge and the center of the hole are consistent => Repeated measurement error is less than 10um (in-house test specification)
- Forced by the end face, it will not damage the needle gauge

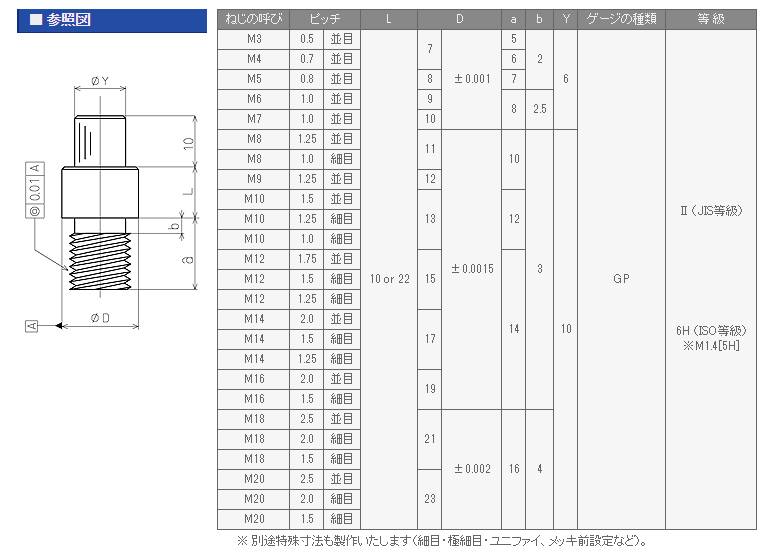

Refer to the specifications next to the picture
|

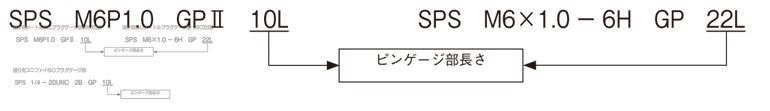

Number of thread Pitch |
 |
| species |
 |
Special shape products
|
Work measurement when the level difference is large |
Simultaneous measurement of deep threaded holes and effective diameter |
Simultaneously measure the coaxiality of the threaded hole |
 |
 |
 |
