1305VC Key Test Machine

Product Serial:RX-FL-1,RX-FL-2,1305VC

Inquiry
1305VC Key Test Machine, Key Test
Product Description

Manual button test RX-FL-1, RX-FL-2

RX-FL-1,RX-FL-2

Product Description:

This machine is suitable for all kinds of buttons and switches to quickly test the peak value of pressing. Automatic rebound function improves test efficiency.

Specifications:

specification RX-FL-1 RX-FL-2
Maximum load 1000gf 2000gf
10.00/N 20.000N
2.00 lb 4.00 lb
Minimum resolution 0.1g 1g
Precision ±0.2%FS ±0.2%FS

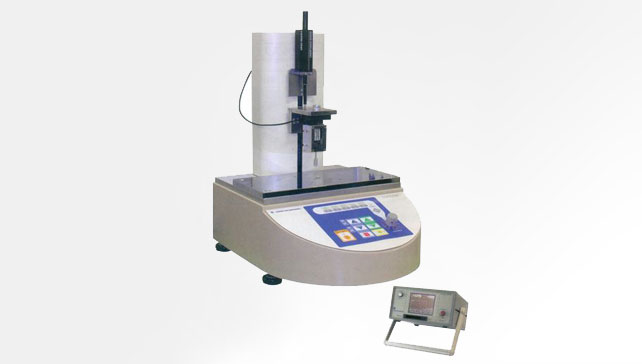

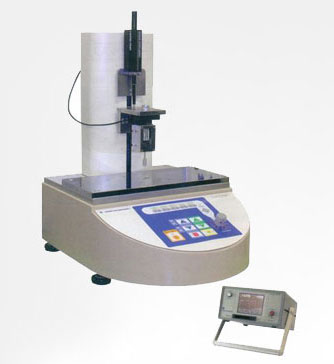

1305VC key test machine

1305NR

When small-stroke workpieces such as membrane key switches or metal shrapnels and general keys require a more precise speed test, this machine can provide a fixed pressing speed to improve the test accuracy, and the repeatability is very accurate. Stable speed for reciprocating test (return fast displacement can be set) Adjustable speed setting: press down speed, return speed. This machine can solve the error caused by the traditional manual test bench due to the unstable speed.



1305VC key test machine, key test

project content
Maximum test load 500g/2kgf/5kgf/20kgf (optional)
Test speed 2-60mm/min
Maximum test stroke 150mm
Stage size 330×150mm
Itinerary detection method Linear Gauge
Stroke measurement indication 0~30m/m, minimum resolution 0.001m/m
Load display Automatic detection of curve parameters CP, CL, RL, RP
Analog output 2V/FS
motor DC motor
Body weight 29kg
physical dimension 440×340×560mm
power supply AC100V/AC220V
Displacement accuracy 0.005mm
