Product Specification
Vertical and horizontal manual test bench 2256
| model |
2256 |
| Maximum load |
500N(50kgf) |
| Moving distance |
2mm/1 rotation |
| stroke |
240mm |
| Mass (when vertical type) |
16kg |
| (For horizontal type) |
12kg |
| Machine size |
W200xH500xD150mm |

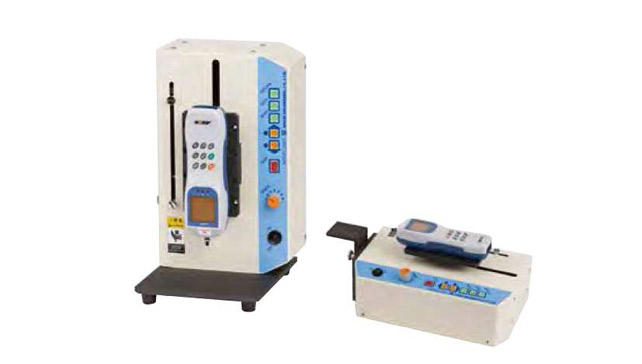

Vertical and horizontal electric test bench 2257
| model |
2257 |
| Maximum load |
50kg |
| Test speed |
10-200 mm/min |
| Speed switch |
Stepless |
| stroke |
150 mm |
| Displacement display |
no |
| Test center |
49mm |
| Test bench size |
200x120mm |
| Drive mechanism |
Screw |
| Drive motor |
DC |
| weight |
20kg |
| Machine size |
215x380x235 |
| power supply |
1ΦAC 100-240V |
Vertical electric test bench 1308
| model |
1308U |
| Maximum load |
100kg |
| Test speed |
5-100 mm/min |
| Speed switch |
Stepless |
| stroke |
400 mm |
| Displacement display |
no |
| Test center |
120x90mm |
| Test bench size |
250x140mm |
| Drive mechanism |
Screw |
| Drive motor |
DC |
| weight |
20kg |
| Machine size |
255x810x300 |
| power supply |
1ΦAC 100-240V |
Bedroom electric test bench 2252R
| model |
2252R |
| Maximum load |
50kg |
| Test speed |
10-80 mm/min |
| Speed switch |
5 segments. No segments |
| stroke |
150mm |
| Displacement display |
no |
| Test center |
|
| Test bench size |
100x100mm |
| Drive mechanism |
Screw |
| Drive motor |
DC |
| weight |
23kg |
| Machine size |
518x228x348 |
| power supply |
1ΦAC 100-240V |
Taiwan-made manual test bench TN-2550A
| model |
TN-2550A |
| Maximum load |
50kg |
| stroke |
150mm |
| weight |
About 28kg |
| size |
250x890x280(mm) |
Taiwan-made electric test bench TN-2550E
| model |
TN-2550E |
| Maximum load |
50kg |
| stroke |
150mm |
| Test speed |
0-120mm/min |
| power supply |
110V |
| weight |
30kg |
| size |
250x890x280(mm) |
Slot type simple test bench: MODEL-1349, screw type simple test bench: MODEL-1345
 |
 |
|
Model: 1349
|
Model: 1345
|
Specifications:
| Maximum load |
50Kgf (500N) |
| stroke |
43mm/140 degree |
| Test platform size |
180mm/100mm |
| weight |
9Kg |
| size |
200W/435H/235 D mm |
