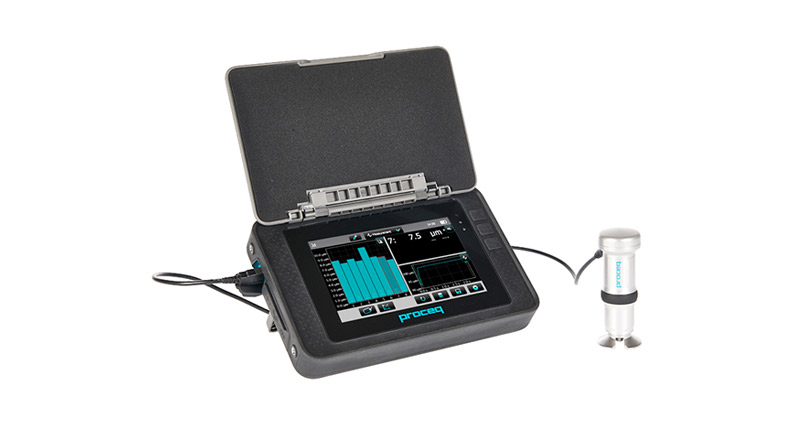

Equotip 550Combined with dynamic Leeb Leeb, handheld Rockwell
|
|
Leeb-heavy and large products or products with installed parts EQUOTIP 550 leeb involves many different applications of the Leeb principle. Because of the adoption of seven different impact devices and 16 support rings, it is the fastest and easy hardness determination method, software wizard, test report, data transfer and other new functions Make hardness testing more convenient and cost-effective than ever. |
 |
|
EQUOTIP 550 UCI is very suitable for the measurement of inaccessible areas (for example: welds, HAZ or difficult surface structures). UCI measurement is fast and easy. Using our world's first UCI measurement, with adjustable detection load from HV1 to HV10, only one probe can cover a wide range of applications. |
 |
|
EQUOTIP 550 Portable Rockwell is a static hardness testing solution, which is very popular in thin and light sample applications. In addition, it can be applied to almost all materials without special adjustments. It is increasingly used as a reference method for other measurement principles. The wide range of accessories makes it a versatile solution. |
 |
 |
The Equotip 550 host can be equipped with three test principle devices, Leeb Leeb, Rockwell, Vickers Ultrasonic UCI, breaking the limit of fixed hardness testing, and a single host can be used together.
By combining multiple solutions to expand the scope of application, 100% portable and extremely flexible, available around the clock, to eliminate interference in production, reliable, accurate and standardized. A single host can achieve multiple detections without repeated purchases. |
 |
Principle: Based on dynamic (rebound method), an impact device with hard metal is pushed by a spring to the detection surface. When the impact device impacts the detection surface, the surface deforms, resulting in kinetic energy loss. By using the permanent magnet in the impact device To locate and measure V1 and Vr due to kinetic energy loss, the detected voltage is proportional to the speed of the impact body, and then the signal will be converted into hardness readings. |
 |
 |
Principle: The traditional Rockwell hardness static testing method is used. During the measurement, the diamond probe is pressed into the test piece with an accurate control force. When the load is applied and released by the colleague, the depth of the diamond probe is continuously measured. The Rockwell hardness is calculated by recording the difference in penetration depth of the two loads during application. |
 |
 |
Principle: The same HV diamond probe as the traditional detection method, but without the need for optical evaluation, it can be quickly measured. By exciting a test rod to make it enter the ultrasonic oscillation, the passing force is 1-10kg, when the diamond probe When the material is pressed, the oscillation frequency of the test rod changes according to the contact area between the probe and the material to be tested. The instrument detects the frequency change and converts it into a hardness value, which is immediately displayed on the screen. |
 |
 |
Suitable for a combination of single detection methods Support users who do not need extensive reporting functions, provide basic functions, and a set of basic accessories, with Leeb D, or Vickers UCI, for portable hardness testing. |
