Product Description

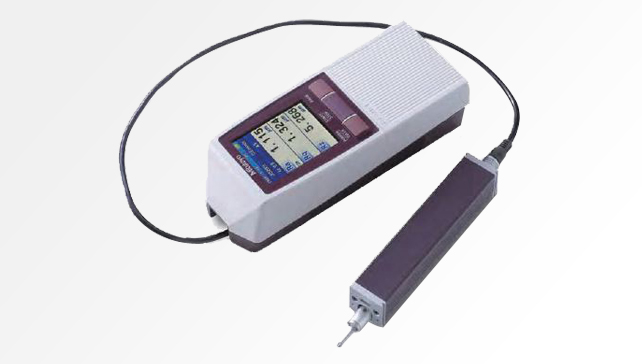

As easy to use as a hand tool, the ultimate version is a portable surface roughness meterSmall size, light weight, and extraordinary operability. It is equipped with a 2.4-inch LCD color screen with backlight, which can display the waveform of surface roughness on the display, even in a dimly-lit workplace.
The built-in memory can store up to 10 measurement conditions. Support password protection function, you can set a password to restrict login to effectively prevent wrong actions.
The built-in software supports 16 languages and can be switched freely. Compared with the previous machine, the charging time is shortened by 1/4.
Product Specification
SPC output cable: 1m 936937 / 2m 965014
| model | SJ-210 standard drive | SJ-210 retreat drive | SJ-210 horizontal drive | |
|---|---|---|---|---|
| Mitutoyo Number | 178-561-01A | 178-563-01A | 178-565-01A | |
| Measuring force | 0.75 mN | |||
| Fixed length (X axis) | 1.75mm | 5.6mm | ||
| Fixed range (Z axis) | 360µm(-200µm~+160µm) | |||
| Resolution/Measuring range | 0.02 µm / 360 µm, 0.006 µm / 100 µm, 0.002 µm / 25um | |||
| Parameter value | Ra, Ry, Rz, Rq, S, Sm, Pc, R3z, mr(c), Rt, Rp, Pk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rlr, Rmr, RC, Rmax, RV , Rsk, Rku, RC, RPc, Rsm, Rzlmax, HSC, RzJIS, Rppi, RΔα, RΔ9, Rmr(c), Rδc, Rpm, tp, Htp, R, Rx, AR | |||
| Capture length | λc | 0.08mm, 0.25mm, 0.8mm, 2.5mm | ||
| λs | 2.5µm, 8µm | |||
| Applicable norms | JIS' 82, JIS' 94, JIS' 01, VDA, ISO 97, ANSI | |||
