Product Description

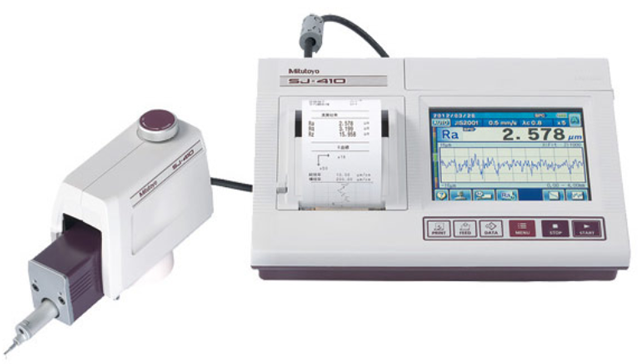

Great leap forward for small surface roughness measuring instruments -> EmphasisEquipped with a large color graphic LCD touch panel with intuitive and convenient high controllability
Support 16 countries and multiple languages -> Emphasis
Large-range and high-resolution detectors realize high-precision measurement -> emphasize
Detector
Measuring range / minimum resolution
800um / 0.01um
80um / 0.001um
8um / 0.0001um
Drive
Linear accuracy / driving length
0.3um / 25mm (SJ-411)
0.5um / 50um (SJ-412)
Up and down tilt device adjustment -> emphasize
Up and down adjustment, device tilt adjustment knob
Product Specification
 |
 |
| Straightness/drive length SJ-411: 0.3µm / 25mm Sj-412: 0.5µm / 50mm |
Original storage box |
SPC output cable: 1m 936937 / 2m 965014
inch/mm switch
| model | SJ-411 | SJ-412 | |
|---|---|---|---|
| Mitutoyo Number |
178-581-01A
|
178-583-01A
|
|
| Determination power |
0.75mN
|
||
| Measuring length | X axis (horizontal) |
25mm
|
50mm
|
| Z axis (longitudinal) |
800 µm, 80 µm, 8 µm, (optional 3X stylus up to 2400 µm)
|
||
| Resolution/Measuring range |
0.01µm / 800 µm, 0.001µm / 80µm, 0.0001 µm / µm
|
||
| Arbitrary measuring length |
0.1~25 mm
|
0.1~50 mm
|
|
| Parameter value |
Ra, Ry, Rz, Rq, Pc, R3z, mr, Rt, Rp, Rv, Sm, S, δc, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Lo, Ppi, R, AR, Rx, Δa, Δq, Ku, HSC, mrd, Sk, W, AW, Wte, Wx, Vo
|
||
| Curve correction |
Parabola, hyperbola, ellipse, circle, oblique, CONIC
|
||
| Applicable norms |
JIS(JIS B0601-2001/1994/1982), VDA, ISO 1997, ANSI
|
||
| Output function |
USB/RS-232C/SPC output
|
||
