Product Description

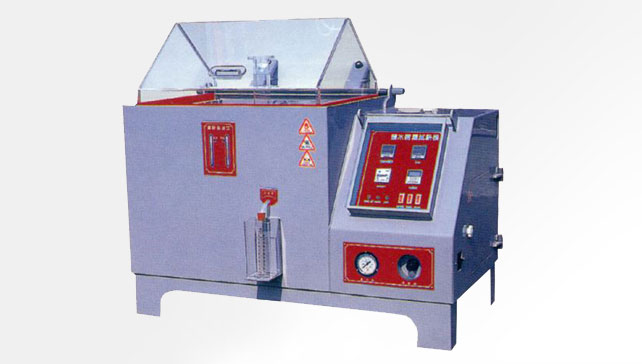

SSTCA salt spray test machine
- The whole PP&PVC solid mechanical structure, acid and alkali resistance, temperature resistance and never aging, suitable for various test specifications such as salt spray, copper acetate...
- The patented nozzle and diffuser make the fog fall quickly and evenly.
- With manual and automatic control mode, the maximum setting time can reach 9'99Hrs.
- After the experiment is completed, there is an automatic defogging device, which can clearly observe the samples in the laboratory.
- Function: For the surface treatment of various materials, including anodizing, electroplating, paint... etc. corrosion resistance test.
- Applicable objects: hardware industry, screw industry, electroplating industry... research units.
- This product complies with international standards: CNS C-6014, H-2040, Z-8026, JIS D-0201, K-5400, D-0205, H-8681, ASTM B-117 and other test specifications.
| model | SST-CA | SST-CB | ||
|---|---|---|---|---|
| Test area size: .WxHxD(cm) | 60× 40 ×45 | 90× 50× 60 | ||
| Dimensions: .WxHxD(cm) | 125×106× 94 | 155× 120× 105 | ||
| Number of collection cups | 1Pc | 2Pc | ||
| Heater | 1000W | 2000W | ||
| temperature range | Test area | Room temp.~50℃ | ||
| Air humidifier | Room temp.~63℃ | |||
| Machine performance | control precision | ±5℃ | ||
| Compressed air pressure | 0.8~2.0±0.01 | |||
| Salt spray volume | 0.5~3.0 | |||
| PHS | Salt spray | 6.5~7.2 | ||
| Vinegar acid copper | 3.0~3.2 | |||
| Material | External material quality | PVC or PP | ||
| Internal material quality | PVC or PP | |||
| system structure | Salt spray solution | Salt spray copper acetate | ||
| Heating system | Titanium heater | |||
| Control System | PID electronic digital + SSR control | |||
| Security system | Circuit system load protection, over-temperature load protection, insufficient medicine protection | |||
| power supply | AC1Φ .220V± 10%. 50/60Hz | |||
