Salt Dry & Wet Compound Corrosion Testing Machine

Product Serial:TMJ-9704

Inquiry
Salt Dry & Wet Compound Corrosion Testing Machine
Product Description

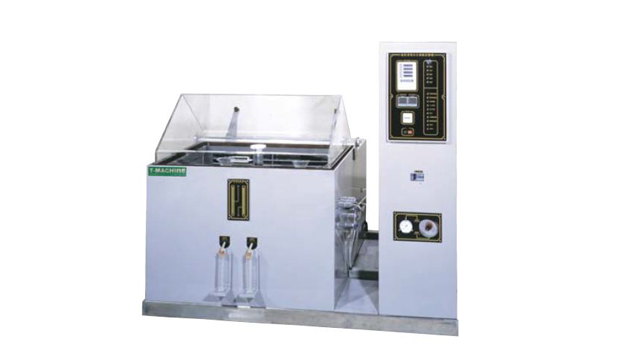

TMJ-9704 Salt Dry-Wet Compound Corrosion Tester



Description:
The compound corrosion test is the closest to the actual natural conditions in the accelerated corrosion test. It simulates the conditions that are more commonly encountered in the natural environment: such as salt spray, hot air drying, humidification, low temperature, etc., combined and can be cycled in any order In the test, the main test items are for items used in drastically changing environments, such as: auto parts, aviation equipment, building materials, coated electronic books, electrical machinery, etc.



Features:

  1. Using a microcomputer program controller, temperature, humidity, drying, freezing, external air introduction, (drying), (dipping), etc. can be set. The sequence can be arranged and repeated cycles. The maximum program value is 99x990 segments.
  2. With power-off memory, it can continue to execute the remaining programs when the power is restored.
  3. The RS 232 interface device can be connected to the computer for control and data processing.
  4. Change the shortcomings of the previous week cycle, with automatic detection, error indication and early warning of brine storage.
  5. German imported high-temperature PVC board has excellent temperature resistance and will never change.



ITEM TMJ-9704C1 TMJ-9704C2
TEST APPLICABLE ACSS,SOAK,DRY,AIR,HUML.ROOMAIR ACSS, DRY, AIR, HUMI
TEST TEMPERATURE -20℃~80℃ RT +10℃~60℃
INSIDE DIMENSION
(WxHxD)mm
960x510x860 900x600x500
OUTSIDE DIMENSION
(WxDxH)mm
1500x1000x1700 1850x1450x1550
VOLUME 420 LITER 270 LITER
WEIGHT 280KGW 200KGW
HUMIDITY RANGE 60~95RH (RT +10℃~70℃) 60~95﹪RH(30℃~60℃)
SALT SOAK TEMPERATURE RT +5℃~50℃(CASS) RT +5℃~50℃(CASS)
SALT SOAK TEMPERATURE RT +10℃~60℃ RT +10℃~60℃
DRY AIR TEMPERATURE RT +10℃~70℃ RT +10℃~60℃
POWER CONSUMPTION 220V SINGLE PHASE 8KW 220V SINGLE PHASE 6KW
