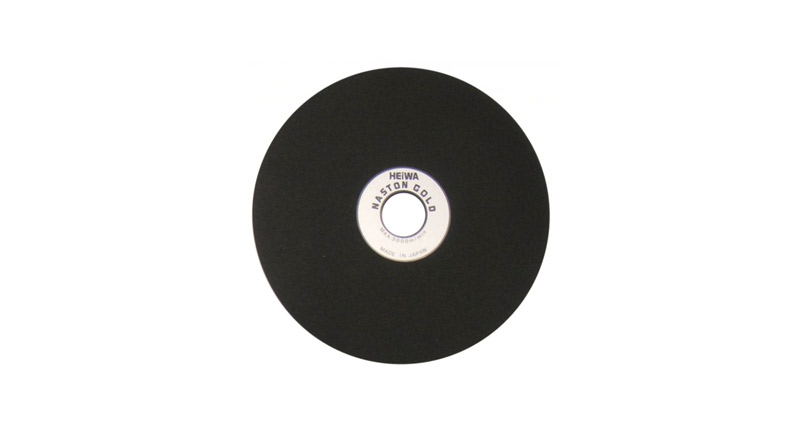

Abrasive Precision Cutting Wheels (NIPPLA)

Product Serial:WA120NA9C / WA100N / A100NB

Inquiry
Abrasive Precision Cutting Wheels (NIPPLA) Abrasive Precision Cutting Wheels (NIPPLA)
Abrasive Precision Cutting Wheels (NIPPLA) Abrasive Precision Cutting Wheels (NIPPLA)
Product Description
The choice of metallographic cutting discs-Heiwa, Nippla made in Japan

Generally speaking, metallographic cutting discs are made of alumina or silicon carbide using resin or other bonding materials. Different materials to be cut can choose different cutting discs for cutting work, and alumina cutting discs are suitable For iron-based metals, silicon carbide cutting discs are suitable for non-ferrous metals and minerals. In addition, different bonding strengths will have different cutting performance.

 High-performance metallographic cutting disc

The cutting wheel made according to the cutting performance parameters required for professional metallographic use can be applied to all cutting machines on the market. The excellent cutting performance can greatly shorten the subsequent grinding and polishing work, and under the premise of sufficient cooling It is not easy to produce a heat damage layer on the surface.

Product Specification

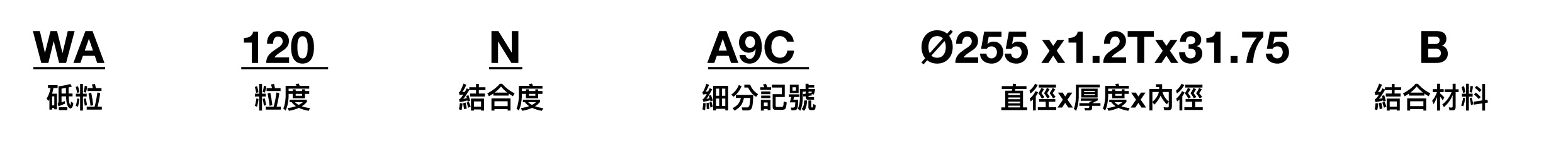

Description of the mark

Standard varieties

Variety hardness Cut off
WA120N9C soft General steel, alloy steel, high-speed steel, heat-treated steel
WA100N Medium hard
WA100O Medium hard
7A80N hard
GC80K101 Very soft Cast iron, non-ferrous metals, resin, glass
GC120NA9C soft
GC100N Medium hard
GC100R9C hard
Choice of size

Outer diameter mm Thickness mm ØInner diameter mm
Ø205 0.8, 1.0 25.4
Ø230 1.0, 1.2 25.4, 31.75
Ø255 1.0, 1.2 25.4, 31.75
Ø305 1.5 31.75
