Automatic Torsion Spring Tester

STP series of spring testing machines and torsion spring testing machines use high-resolution LCD screens, and innovatively use the jog dial to control the action of the load mechanism in terms of operability. Simple commands can be used to test the characteristics of the spring, and the standard high-speed built-in The printer can print test results, specification value settings and statistical data.

• Simple Chinese, English and Japanese operating interface, using innovative jog dial to control the action of the load mechanism.
• AC100V-240V input power supply can be directly plugged in and used anywhere.

Key operation part
The operation keys use different colors and arrangements, and the intuitive operation key arrangement makes it easy for users to operate the machine.

Shuttle Controller
The knob on the outer side can change the movement from low speed to high speed, and the knob on the inner side can be used to control any small amount of movement.

Measurement screen
The measurement screen uses a simple beautification and high-resolution LCD screen, and the measurement results can be displayed clearly on a simple configuration. The number, times and interval of consecutive trials are also concisely displayed on the right side of the screen.

function

1. Tolerance setting can easily distinguish qualified and unqualified products.
2. It can set up to 5 stages of measurement.

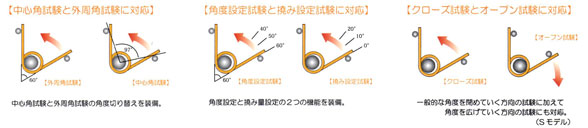

3. Set load value, torque value and free angle measurement at any angle.
4. The measurement result can be printed out instantly by the built-in high-speed printer.
5. It can be used with the jog dial to easily input setting items.
6. The commonly used measurement conditions can be stored under the name of the product so that they can be called out for testing later, and the same test conditions can be omitted every time.

Spring testing machine, torsion spring testing machine-STP type
