Product Description

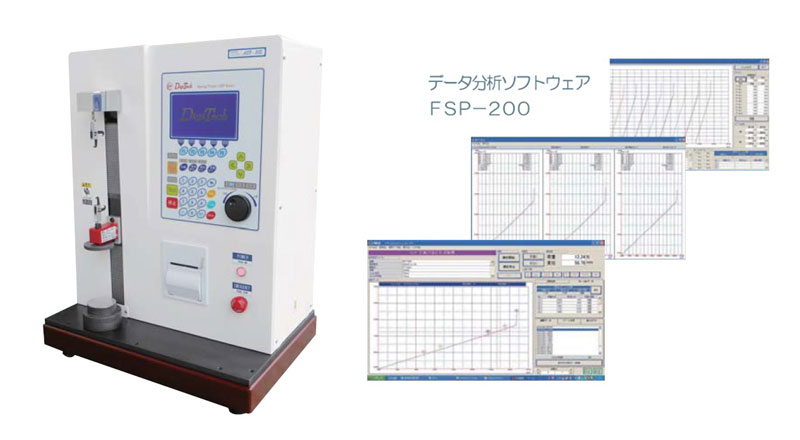

Automatic spring testing machine DigiTech ASP series

ASP series product features

Can test compression, tension, and load test of dish spring
Up to 5 segments can be set to test
The setting mode has the measurement of load, free height, tension, adhesion height, and maximum value
The built-in high-speed printing printer can quickly print out the test result data
Can set test length, deflection, average measurement of reciprocating test
Various test conditions can be registered (up to 100)
The specification value can be set. After the test is completed, the ability index such as the number of qualified and unqualified can be displayed at a glance under the aggregate function
Built-in multi-language settings, you can switch between Chinese, Japanese, English and Korean display at any time
Length measurement or deflection measurement can be carried out by load setting (S type is standard equipment)
In the composite measurement mode, a composite test of load measurement and displacement measurement can be performed in one round of test (S type is standard equipment)

ASP series product specifications

Specification \ Model	ASP-1/ASP-1S	ASP-5/ASP-5S	ASP-10/ASP-10S	ASP-50/ASP-50S
Freeze load	10 N(1 Kgf)	50 N(50 Kgf)	100 N(10 Kgf)	500 N(50 Kgf)
Measuring load unit	N,gf,lb				N,Kgf,lb,
Minimum load indication	0.1 mN (0.01 gf)	1 mN(0.1 gf)			10 mN(1 gf)
Minimum length representation	0.01 mm
Test speed	1 ~ 600 mm/min
Maximum measuring length	210 mm
Compression disc diameter	Φ 20	Φ 60
Test machine specifications	JIS B 7738 "Coil Spring-Verification of Compression and Tension Testing Machines" 0.5 class suitable
Drive mechanism	Precision ball screw, AC servo motor
Protection circuit	Limit stop, overload stop, emergency stop
External communication method	USB 1.1 specification
Body size	W450xdiv0xD350
Body weight	About 45 Kgf
power supply	AC100V or 220V
