SMZ445/SMZ460
- The SMZ445 has a 45° eyepiece tube inclination, and the SMZ460 has a 60° eyepiece tube inclination, which is ideal for embedded use.
- Compact design with ease-of-use and high optical performance.
- ESD protection guards against electrostatic damage to samples.
|
Cost-effective solid microscope SMZ445 and SMZ460 have the excellent optical performance expected by NIKON entity zoom microscope. Porro prisms realize a lightweight and compact design. Using 0.8x-3.5x zoom magnification (SMZ445) and 0.7x-3.0x zoom magnification (SMZ460), as well as transmissive/reflective LED brackets, SMZ445 and SMZ460 allow you to observe everything from petri dishes to plants, insects, small animals and Various specimens such as minerals. |
 |
 |
Excellent optical performance According to the optical design and quality standards of all NIKON high-performance solid microscope series, high-quality, high-flatness images are obtained. Various coatings are applied to the lens surface to provide clear, bright and high-contrast images. |
|
Long working distance The long working distance is 100mm, even if the sample surface is obviously uneven, it can be fully focused. This is useful when manipulating specimens with forceps and dissecting tools. |
 |
|
Auxiliary objective Just install an auxiliary objective lens to get a wider field of view and a longer working distance. There are two types, 0.5x (WD 181mm) and 0.7x (WD 127.5mm) |
|
 |
Anti-mold treatment The inside of the zoom body is anti-mildew finishing, so that the quality of the microscope can be maintained even in hot and humid environments. |
| Built-in LED light group Multifunctional LED built-in transmission and reflection illuminating the body. The light intensity of each illumination can be adjusted individually, and both can be used at the same time. The light source uses high-brightness LEDs. Due to the long service life, the cost and trouble of frequent replacement can be avoided. |
 |
| SMZ445 | SMZ460 | |
|---|---|---|
| Optical system | Greenough type (zooming type) | |
| Zooming ratio | 4.4 : 1 | 4.3 : 1 |
| Zooming range | 0.8‑3.5X | 0.7‑3X |
| Total magnifcation | 4‑70X | 3.5‑60X |
| Tube | Eyepiece inclination: 45° Interpupillary distance adjustment: 54–75 mm Eyepiece diopter adjustable for both eyes |
Eyepiece inclination: 60° Interpupillary distance adjustment: 54–75 mm Eyepiece diopter adjustable for both eyes |
| Eyepieces | SM 10xB (F.N. 21), SM 15xB (F.N. 14), SM 20xB (F.N. 12) | |
| Auxiliary objectives (option) | SAL5 (0.5x), AL7 (0.7x) | |
| Working distance | 100 mm (standard) | |
| Weight (approx.) | 1.0 kg (body) | 1.1 kg (body) |

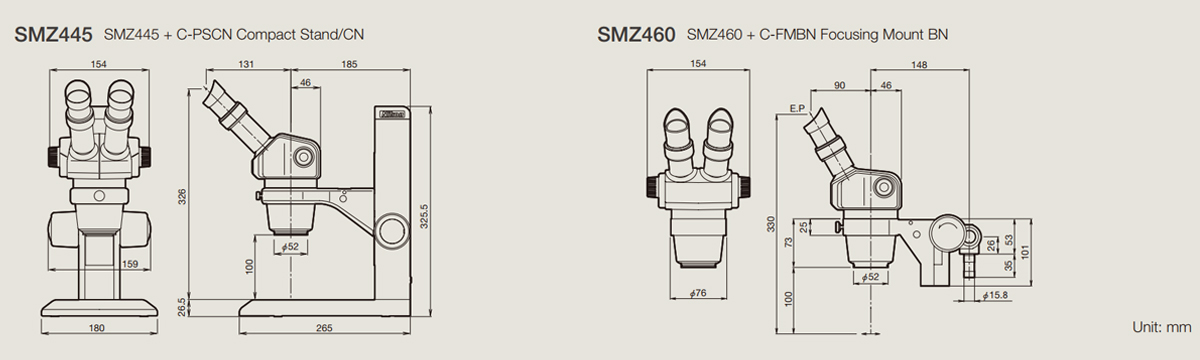

Dimensions
