NIKON SMZ745 Microscope

SMZ745 / SMZ745T

• The SMZ745/745T boasts a 7.5x zoom that incorporates the Greenough optical system. The zoom range of 0.67x to 5x provides a broad observation range.
• As well as high zoom ratio and magnifcation, the SMZ745/745T offers an unrivaled 115 mm working distance.
• The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera. A microscope camera can be attached.

				NIKON's solid microscope has 7.5x zoom and 115mm Working distance The NIKON SMZ745 microscope has a 7.5x zoom and a long working distance of 115 mm, making it ideal for industrial and biomedical applications. The new total reflection prism can generate brighter and higher contrast images, and the anti-mold design allows the microscope to be used in environments with high temperature and humidity. The SMZ-745T trinocular model is equipped with a microscope camera port and a built-in 0.55x C interface adapter, which can be directly installed with the NIKON DS series of digital cameras.
Three "prevention" design Dustproof (SMZ745) By sealing joints, prevent pollution caused by dust, oil, water and other pollutants. Sealing structure: Support Japanese Industrial Standard JIS protection grade IPX1 Anti-mold (SMZ745 / SMZ745T) The anti-mold design developed exclusively by NIKON allows you to use the microscope in an over-temperature or over-humid environment with confidence. Anti-static (SMZ745 / SMZ745T) The static electricity accumulated in the microscope can be discharged almost immediately.
				Trinocular tube is ideal for monitoring and digital imaging SMZ745T includes a light path switching lever, which can be easily switched between the eyepiece and the camera. Nikon Digital Sight series cameras can be installed.

F.N.: Field Number

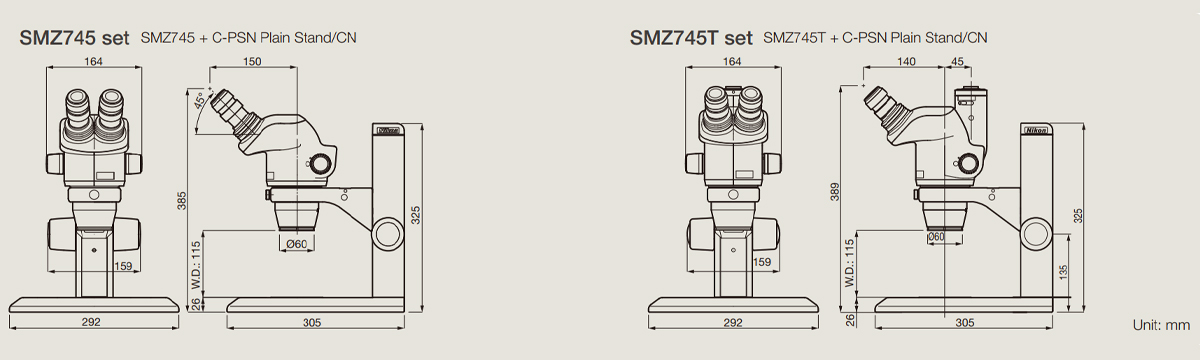

Dimensions
