Product Description

Double detectors and difference calculation function, convenient to perform amplitude, eccentricity and other measurements
Full range of true equipment qualified judgment output, BCD/RS232C output optional
Measurement conditions, tolerance setting values, 7 groups of memory in the upper/lower section

Product Specification

Type		IPD-FCC1	IPDFCC1 /BO	IPD-FCC1 /RS	IPD-FCC2	IPDFCC2 /BO
display		Polarity and 6 digits (2 segments), mode display and green/red backlight LCD
Minimum reading		0.5/1/5/10um (optional)
Display range		-99.9995~+99.9995mm
Quantization error		±1 digit
Reading speed		2000mm/sec
I/O	Terminal block	Yes (-NG/OK/+NG, error)
	BCD	no	Have	no	no	Have
	RS-232C	no	no	Have	no	no
Number of detector connections		1 piece			2 pcs
Total calculation function		no			+A+B,+AB,-A+B,-AB
Zero way		The front panel or external signal control can be zeroed at any point
Data retention method		External signal control to maintain panel data
Measurement direction switch		+ (Switchable settings)
Preset function		Polarity and six-digit preset
Sorting function		3 segments (up to 7 groups of data can be input and stored)
Peak measurement		+P,-P,PP,PP/2 (+P: maximum value. --P: minimum value)
power supply		Terminal block: DC12-24V (±10%) 9VDC power supply (optional)
quality		About 630g	About 670g	About 690g	About 640g	About 680g

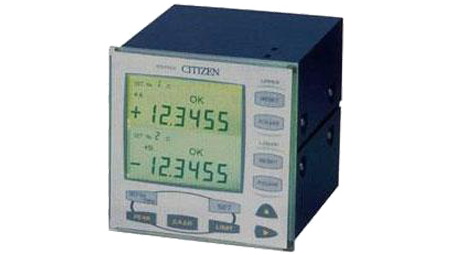

Display IPD FCC
