Product Description
Film thickness gauge
OXFORD

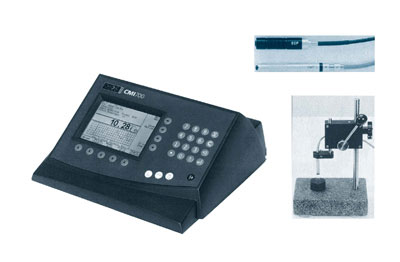

700 series (EMX) coating (plating) thickness tester for hardware, screws, insulators and electroplating industry
It is a desktop non-destructive contact coating (plating) film thickness gauge.
Non-destructive measurement of various metal coatings.
High precision, good stability, can measure various micro components (Φ2.5mm)
Eddy current mode:
Electroplating layers on magnetic substrates, such as various plating layers (Zn zinc, Ni nickel, Cd cadmium, Cu copper) on the steel substrate, etc.
Non-conductor coatings on magnetic substrates, such as various coatings (paint, plastic, enamel) on iron, etc.
Magnetic induction type:
Magnetic Steel coating on non-magnetic substrates, etc.
Product Specification
CMI700 technical parameters
- Accuracy: ±3%
- Resolution: 0.1um
- Minimum radius of curvature 1.2mm (convex): 1.5mm (concave)
- Minimum measurement area: Φ2.5mm
- Minimum substrate thickness: 0.35mm
- Display: 6-digit LCD digital display
- Measurement unit: um-mils optional
- Calibration method: precise two-point calibration
- Statistics: average, standard deviation,
- Maximum value max, minimum value min
- RS232 output, print output
- Power supply: AC220
- Instrument size: 290×270×140mm
- Instrument weight: 2.79kg
| principle | application | Measuring range | Standard test probe | Special angle probe |
|---|---|---|---|---|
| Eddy Current |
Non-conductor/metal (non magnetic) |
0-40mils 0-1000μm |
EP-3, ECP, ECP-M |
REP-3, R-ECP |
| Zinc/Stee | 0-1.5mils 0-37.5μm |
EP-3, EP-4, EP-3M, EP-4M, ECP, ECP-M |
REP-3, REP-3M, REP-4M, R-ECP |
|
| Cadmium/Steel | 0-1.5mils 0-37.5μm |
EP-3, EP-4, EP-3M, EP-4M, ECP, ECP-M |
REP-3, REP-3M, REP-4M, R-ECP |
|
| Copper/Steel | 0-1.5mils 0-37.5μm |
EP-3, EP-4, EP-3M, EP-4M, ECP, ECP-M, EP-5 |
REP-3, REP-3M, REP-4M, R-ECP |
|
| Copper/non-metal (Epoxy) |
0.7-5.0mils 17.5-125μm |
EP-3, EP-4, EP-4M |
REP-4M | |
| Nickel/Steel (electroplated) |
0-1.3mils 0-32.5μm |
EP-4, EP-4M | REP-4 | |
| Nickel/Steel (electroplated) |
1-3.0mils 25-75μm |
EP-5 | - | |
| Magnetic | Non-magnetic/magnetic (steel) |
0-50mils 0-1250μm |
SMP-1 | RSMP-1 |
| Magnetic Nickel Mode |
Nickel plating/non-magnetic | 0-5mils 0-125μm |
NI-MS/TE, NIP |
| Probe model | high | Minimum radius of cylinder | Measuring diameter (d) | |
|---|---|---|---|---|
| Convex (rl) | Concave (r2) | |||
| ECP | 3.25" | 0.440" | 0.500" | 0.360" |
| ECP-M | 4.0" | 0.060" | 0.045" | 0.090" |
| EP-4M | 4.0" | 0.060" | 0.045" | 0.090" |
| SMP-1 | 4.25" | 0.250" | 0.060" | 0.200" |
