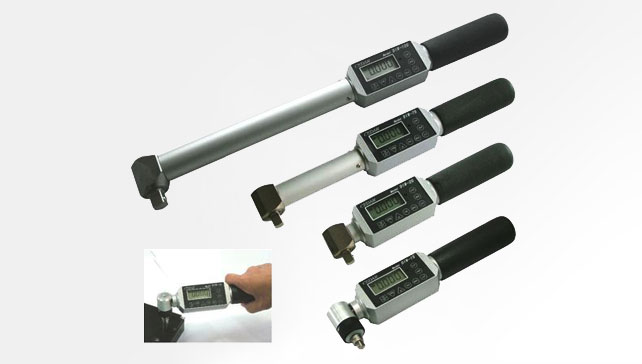

DIW Digital Torque Wrench

Product Serial:DIW -> DIW-15M / DIW-75M

Inquiry
DIW Digital Torque Wrench
Product Description

Torque wrench, DIW digital torque wrench

扭力扳手、DIW數位式扭力扳手



扭力扳手、DIW數位式扭力扳手

Torque wrench, DIW digital torque wrench

Type DIW-15M DIW-20M DIW-75M DIW-120M
Measuring range 0.20~15N.m
2.0~150kgf.cm
2.0~130ibf.in
0.20~20N.m
2.0~200kgf.cm
2.0~174ibf.in
0.20~75N.m
2.0~750kgf.cm
2.0~651ibf.in
2.0~120N.m
20~1200kgf.cm
20~1040ibf.in
Precision ±0.5% (199 digit or less ± 1 digit) ±0.5% (199 digit or less ± 1 digit) ±0.5% (499 digit or less ± 3 digit) ±0.5% (199 digit or less ± 1 digit)
Test function PP, TR, PD, C
Qualified judgment Upper and lower limits can be set (light display)
Determination direction CW-CCW (left and right direction)
Dimensions φ34(grip) x 369(L)
socket part 6.35sq
φ34(grip) x 235(L)
socket part 9.5sq
φ34(grip) x 320(L)
socket part 9.5sq
φ34(grip) x 445(L)
socket part 12.7sq
annex One-way mechanism socket / AC adaptor
