Digital Torque Screwdriver / Idling Digital Torque Screwdriver

Product Serial:NDID-150CN

Inquiry

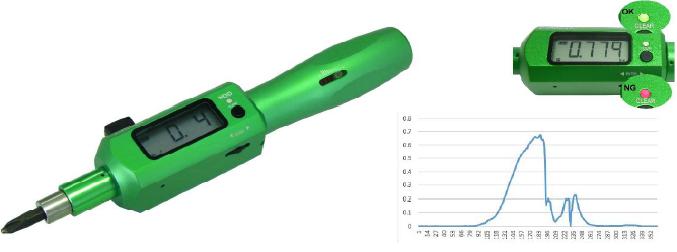

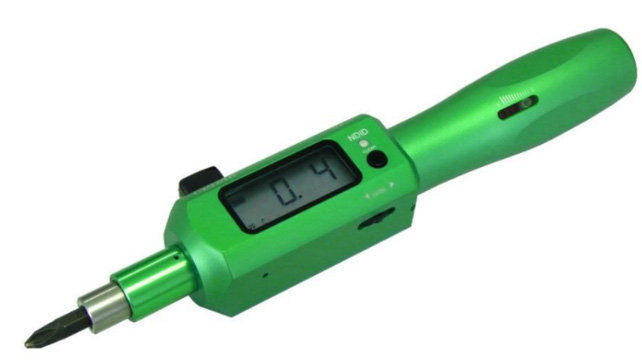

Digital Torque Screwdriver / Idling Digital Torque Screwdriver
Product Description

After adjusting the idling torque and locking, the torque value and locking number can be recorded.



When a digital torque screwdriver

  • The upper/lower limit torque can be set, and different LED displays and buzzers will be generated according to the set torque value.
  • 400 pieces of memory data can be output to a USB memory card
  • Built-in convenient rechargeable battery! Has automatic shutdown safety function
  • Real-time output data can facilitate various torque detections

When idling digital torque screwdriver

  • The upper/lower limit torque can be set, and different LED displays and buzzers will be generated according to the set torque value.
  • 400 pieces of memory data can be output to a USB memory card
  • Built-in convenient rechargeable battery! Has automatic shutdown safety function
  • Real-time output data can facilitate various torque detections

Product Specification
Model NDID-150CN
Scope 0.20~15.30 kgf-cm / 0.18~13.28 lbf-m / ​​0.020~1.500 N-m (switchable)
Accuracy ± (1%+1 bit) *Does not include idling torque slippage
Operating temperature 10 ~ 35 ℃ (storage temperature 0 ~ 45 ℃ )
Measurement mode Mode Content description
Screw Counter PPC When measuring the maximum torque value after idling, there will be count management of the number of screws
Peak Hold PP Measured maximum value
Real Time Output C When the torque value is triggered, 500 pens (direction, torque value) can be stored
Track - Display torque trajectory value
Memory function Mode Recording purpose
Screw Counter PPC USB memory card
Peak Hold PP Main body (maximum 400 pens)
Real Time Output C USB memory card
Track - None
Battery Ni-MH rechargeable battery can be reused at least 300 times (charging time is about 3 hours)
Auto shutdown 3 minutes
Accessories AC charger, Bit#1,2, USB memory card, calibration certification report
