- Innovative torque corrector comes out
- Provide electric torque screwdriver/Advanced management of manual torque wrench
Measurement time
Date and time and other information are It can be recorded, and the old data can be quickly checked when in doubt.

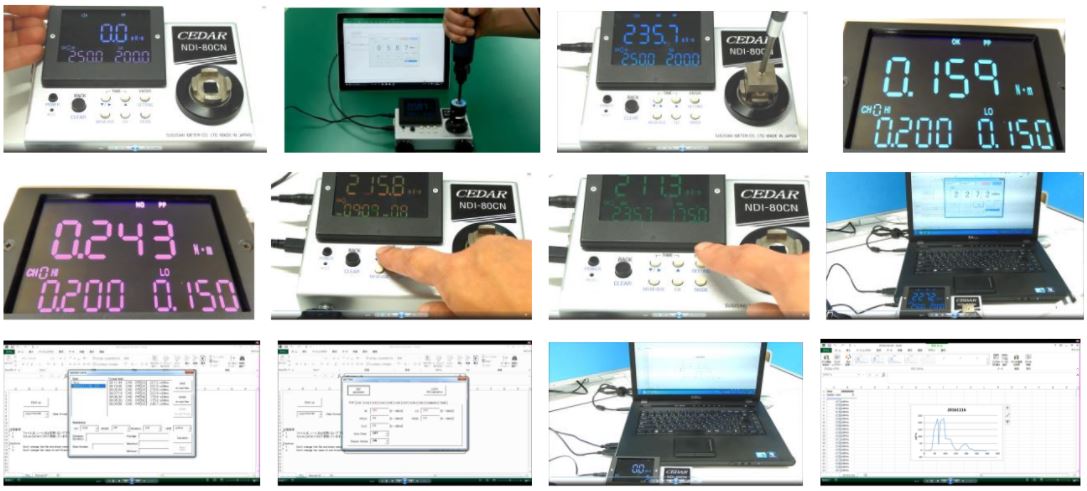

Quality Judgment Display
Color LCD The display screen can be easily judged by color according to the test data.
Can be controlled via PC
Connect When the cable is connected to the PC, the PC can be used to control all operations of the torque device body.
Connectable to PLC
RS232C output is also standard equipment, open I/F specification communication can be done completely through PLC to do any control you want.
Dry batteries can be used
Except for external Dry batteries can also be used in addition to the power supply, so there is no need to replace the troublesome problem of reduced life of rechargeable batteries.
Model | NDI-80CN | NDI-800CN | |
---|---|---|---|
Scope | 0.020 ~ 8.160kgf-cm | 0.20 ~ 81.60 kgf-cm | |
0.018 ~ 7.080 lbf-m | 0.18 ~ 70.80 lbf-m | ||
2.0 ~ 800.0 mN-m | 0.020 ~ 8.000 N-m | ||
Unit | Kgf-cm / lbf-m / mN-m | Kgf-cm / lbf-m / mN-m | |
Accuracy | ±0.5% (bits below 499 are ±3 bits) | ||
Sampling frequency | 1000 transactions per second | ||
Measurement mode | Symbols | Content description | |
Peak Hold | PP | Maximum torque value | |
Peak Down | PD | The first maximum torque value | |
Real time output | C | 250 torque data output per second | |
Track | TR | Mainly used in calibration | |
Memory capacity | 400 entries | ||
Time | Save the measurement date | ||
Power supply | Transformer (12V) / AA dry battery | ||
Aperture of torque detection part | □20 / □9.5 | ||
Accessories (one each) | Measuring fixture OW-25 / OW-10 | Measurement fixture OW-20 / OW-60 | |
The cube with M2.6, M3, M4, M5 and M6 screw holes is 20x20x20mm in size | |||
AC/DC transformer (input AC100~240V (50/60Hz), output DC12V) | |||
USB connection (mini B type ) | |||
4 AA dry batteries | |||
Traceability system diagram, calibration certification report, calibration result report |
*Warning: Do not use percussion tools
