Minimizing the Heat-Affected Zone During Metallographic Sectioning: Effects of Cooling, Feed Rate, and Cutting Wheel Selection

Sectioning is the first critical step in metallographic specimen preparation. The purpose of sectioning is not merely to reduce a material to an observable size, but to obtain a representative cross-section without altering its original microstructure. When excessive heat is generated during sectioning, the specimen surface may undergo tempering, rehardening, phase transformation, oxidation discoloration, plastic deformation, microcracking, or the development of residual stresses. These thermal effects and mechanical damage may persist through subsequent grinding and polishing processes, ultimately leading to misinterpretation of the material's original microstructure during microscopic examination.

This article identifies five primary sources of thermal damage during metallographic sectioning: improper cutting wheel selection, excessive feed rate, insufficient cooling, unstable specimen clamping, and inappropriate cutting paths. The findings indicate that minimizing thermal damage cannot be achieved simply by reducing the cutting speed. Instead, it requires simultaneous control of cutting wheel hardness and abrasive type, coolant flow rate and direction, feed load, specimen fixturing rigidity, and post-sectioning surface inspection. By establishing standardized sectioning parameters, laboratories can significantly reduce specimen rework, edge distortion, and the risk of incorrect microstructural interpretation.

1. Introduction: Reliable Metallographic Results Begin with Proper Sectioning

ASTM E3 states that the purpose of metallographic examination is to reveal the composition and microstructure of metals and alloys, and that specimen selection and preparation have a significant influence on the quality of the results. In other words, reliable metallographic images are not created only under the microscope; they are the result of every preparation step, including sampling, sectioning, mounting, grinding, polishing, and etching.

Among all specimen preparation procedures, sectioning is one of the most frequently overlooked. One reason is that thermal damage caused during cutting is not always immediately visible. Some materials exhibit obvious burn discoloration, whereas others reveal abnormal surface microstructures only after microscopic examination. If such damage is not identified immediately after sectioning, considerable time may be spent on grinding and polishing without ever obtaining a reliable metallographic image.

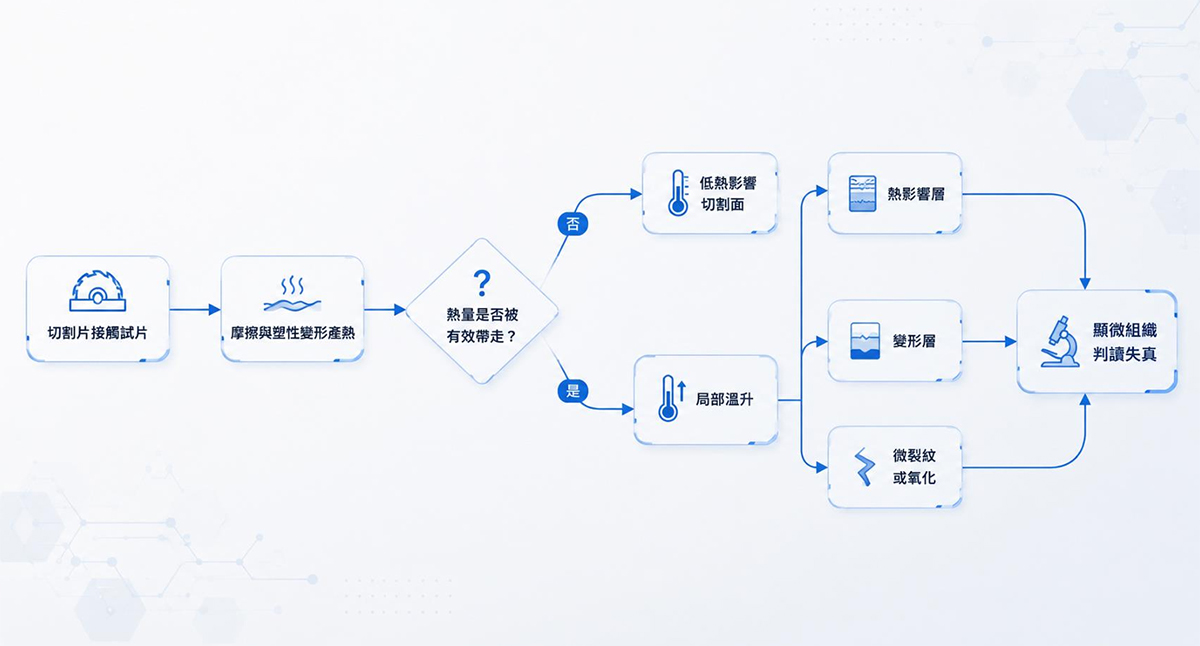

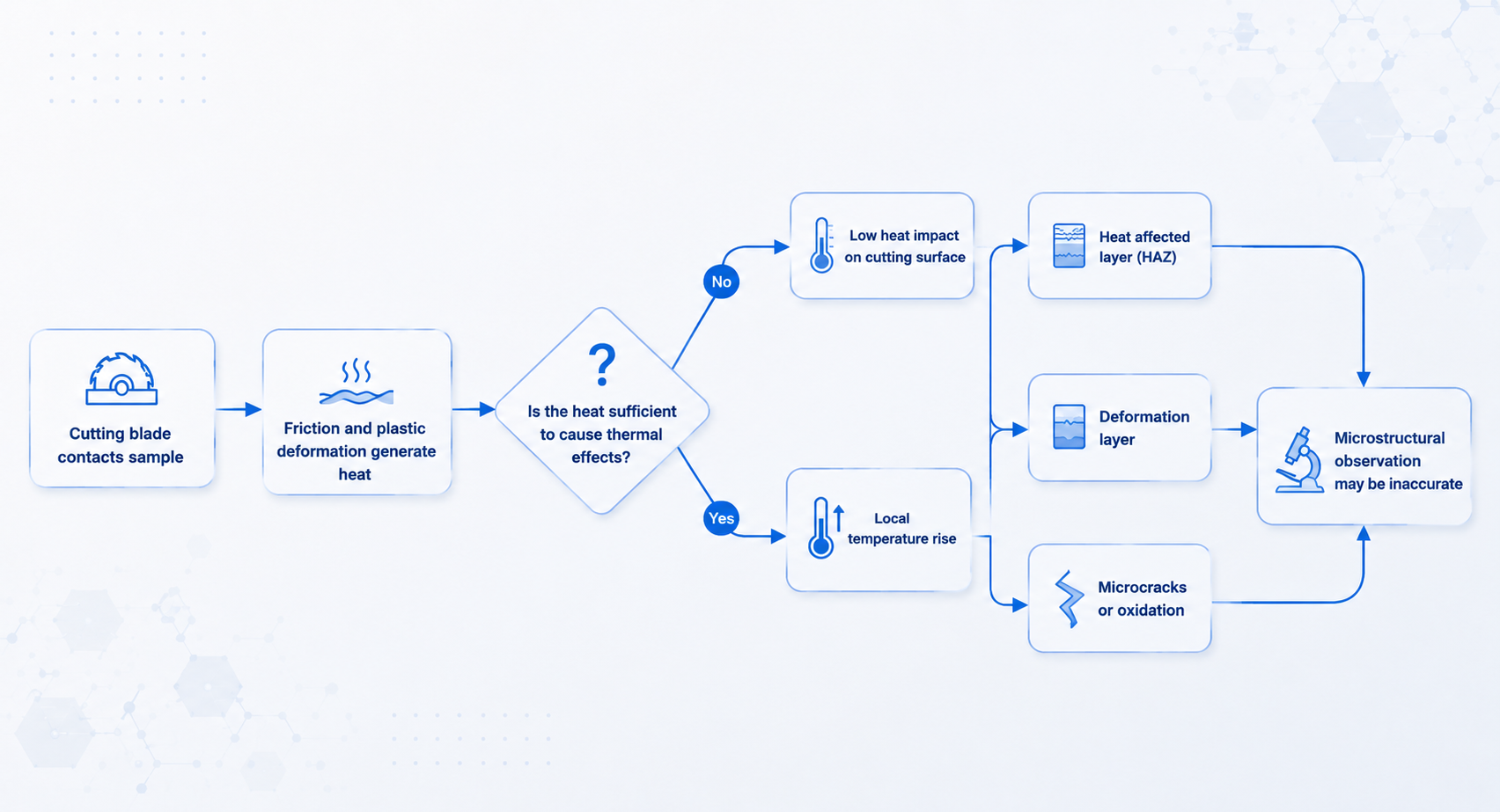

Figure 1. Mechanism of Heat-Affected Zone Formation During Metallographic Sectioning

2. Research Question: What Is Thermal Damage During Metallographic Sectioning?

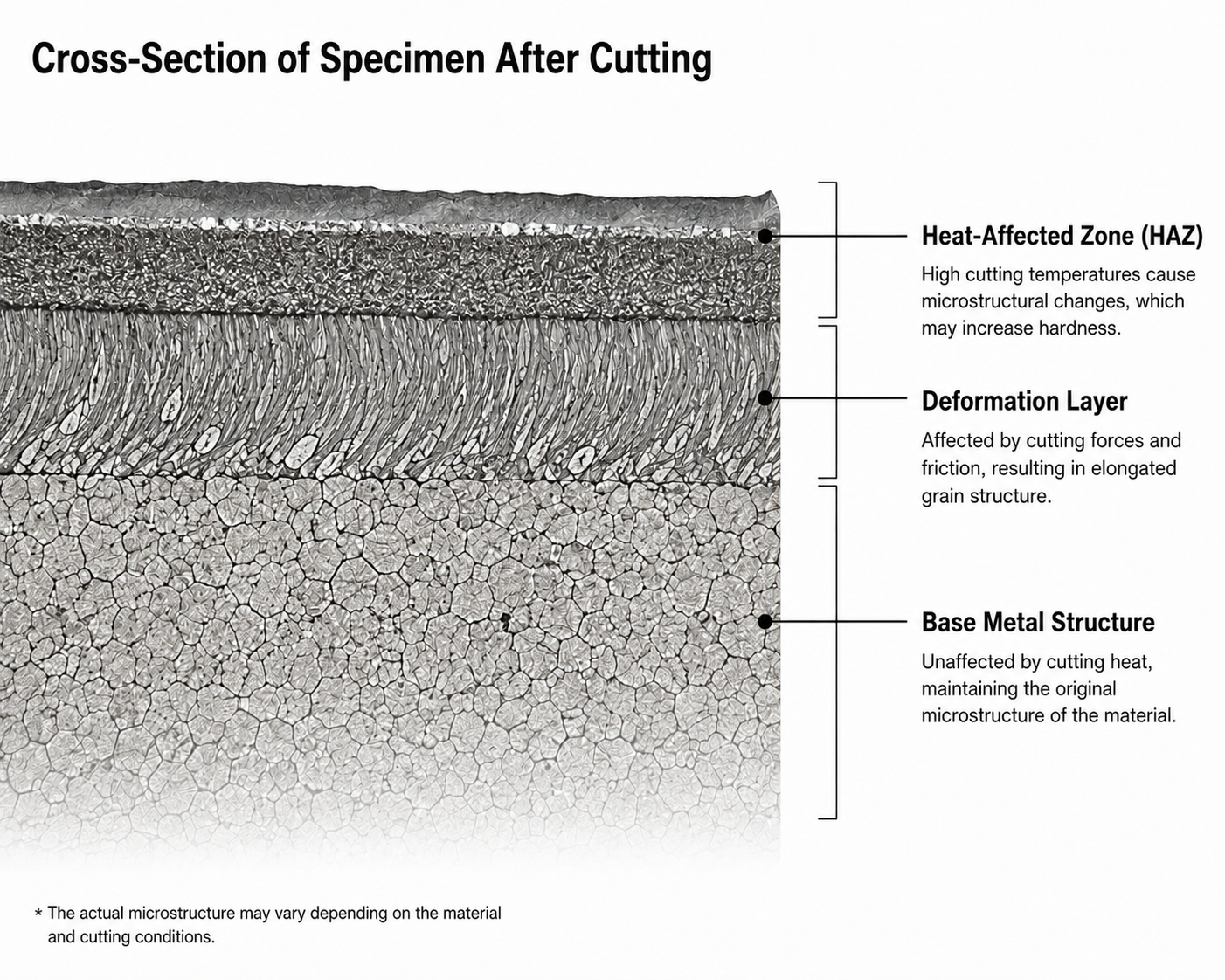

Thermal damage during sectioning refers to the alteration of the specimen surface caused by localized temperature rise, friction, compression, or tensile forces during the cutting process. It may result solely from thermal effects or from the combined effects of heat and mechanical deformation. In metallographic analysis, the primary concern is not whether the cut surface appears visually acceptable, but whether the cross-section still accurately represents the material's original microstructure.

Common forms of thermal damage include:

3. Major Sources of Thermal Damage During Sectioning

3.1 Improper Cutting Wheel Selection

A cutting wheel is not necessarily better simply because it is harder or thinner. The abrasive type, bond hardness, thickness, and self-sharpening characteristics of the cutting wheel all influence the amount of heat generated during sectioning.
If the cutting wheel is too hard, abrasive grains are less likely to detach and renew, causing the cutting surface to become dull and increasing frictional heat. If the cutting wheel is too soft, excessive wear occurs, reducing cutting stability.
The harder, tougher, or more prone to work hardening a material is, the more important it becomes to select a cutting wheel that maintains cutting efficiency while minimizing excessive friction.

Common evaluation methods:

• A significant increase in sparks during sectioning may indicate excessive friction.
• A sharper cutting sound may indicate a dull cutting wheel or excessive cutting load.
• A bright cutting surface that is difficult to grind afterward may indicate surface work hardening.
• Abnormally rapid cutting wheel wear may indicate that the wheel is too soft or incompatible with the material.

3.2 Excessive Feed Rate

When the feed rate is too high, the cutting wheel must remove more material within a given time, increasing the load in the cutting zone. As a result, heat generation and mechanical deformation also increase. In many laboratories and production environments, operators increase the feed rate to shorten sampling time; however, this often transfers the time cost to subsequent regrinding, repolishing, or recutting processes.

An appropriate feed strategy should allow the cutting wheel to maintain stable cutting performance rather than forcing excessive pressure onto the material. For high-hardness steels, heat-treated components, ceramics, cemented carbides, thermal spray coatings, and coated specimens, lower cutting loads combined with stable cooling should be applied. When necessary, pulsed or stepwise feeding can be used to allow sufficient cooling and chip removal in the cutting zone.

3.3 Insufficient or Improperly Directed Coolant

Coolant performs three essential functions: removing heat, flushing away chips, and reducing cutting wheel loading. If coolant is sprayed only onto the outer surface of the cutting wheel without reaching the actual cutting contact zone, the surface may appear wet while heat remains concentrated inside the specimen. Insufficient coolant concentration or contaminated coolant can also reduce cooling and lubrication effectiveness.

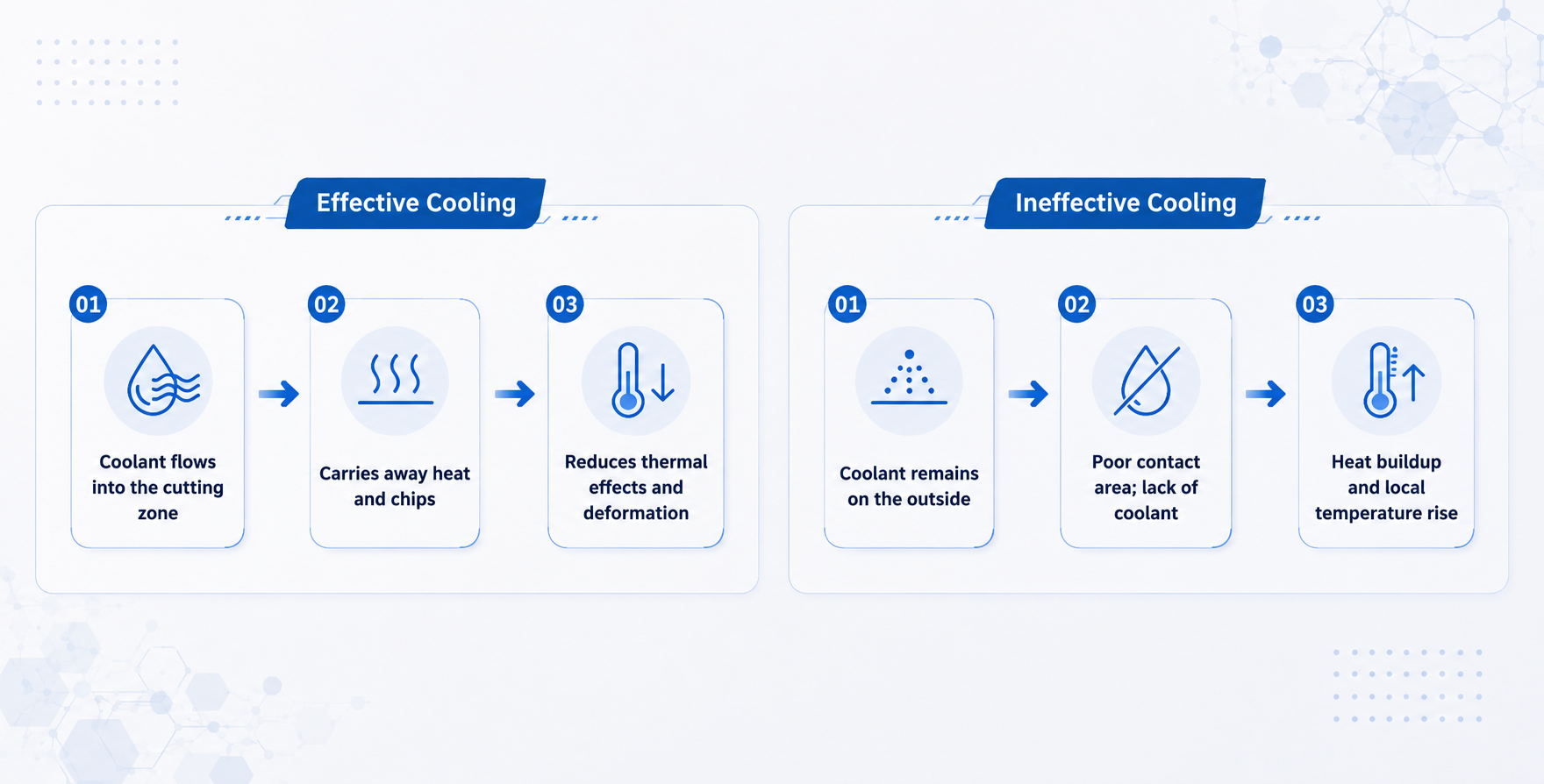

Figure 2: Comparison Between Effective and Ineffective Cooling

Coolant must reach the cutting contact zone to be effective. Simply wetting the surface of the cutting wheel does not guarantee sufficient cooling.

3.4 Vibration and Localized Friction Caused by Unstable Clamping

Unstable specimen clamping can cause vibration, movement, and increased localized contact pressure. These issues not only increase cutting marks but also cause heat to concentrate in specific areas. Small specimens, irregularly shaped parts, tubes, thin sheets, and coated samples are particularly susceptible to damage caused by inadequate fixation.

The principle of specimen clamping is to ensure that the sample does not slip, warp, or experience excessive single-point pressure during sectioning. When necessary, auxiliary supports, resin mounting, soft pads, or dedicated fixtures may be used; however, supporting materials must not interfere with cutting safety.

3.5 Improper Cutting Path and Sampling Direction

The cutting path affects heat distribution and subsequent metallographic interpretation. If the cutting process directly enters the most critical analysis surface, thermal damage may be concentrated in the exact area requiring examination. For coatings, welds, cracks, failure origins, and surface-treated layers, the analysis objective should be defined first, followed by determination of the cutting direction and required material allowance.

Sufficient grinding allowance should be retained so that subsequent grinding can remove sectioning damage; however, excessive reliance on grinding for correction should be avoided. If the heat-affected layer is too deep, grinding time will increase and edge geometry may also be compromised.

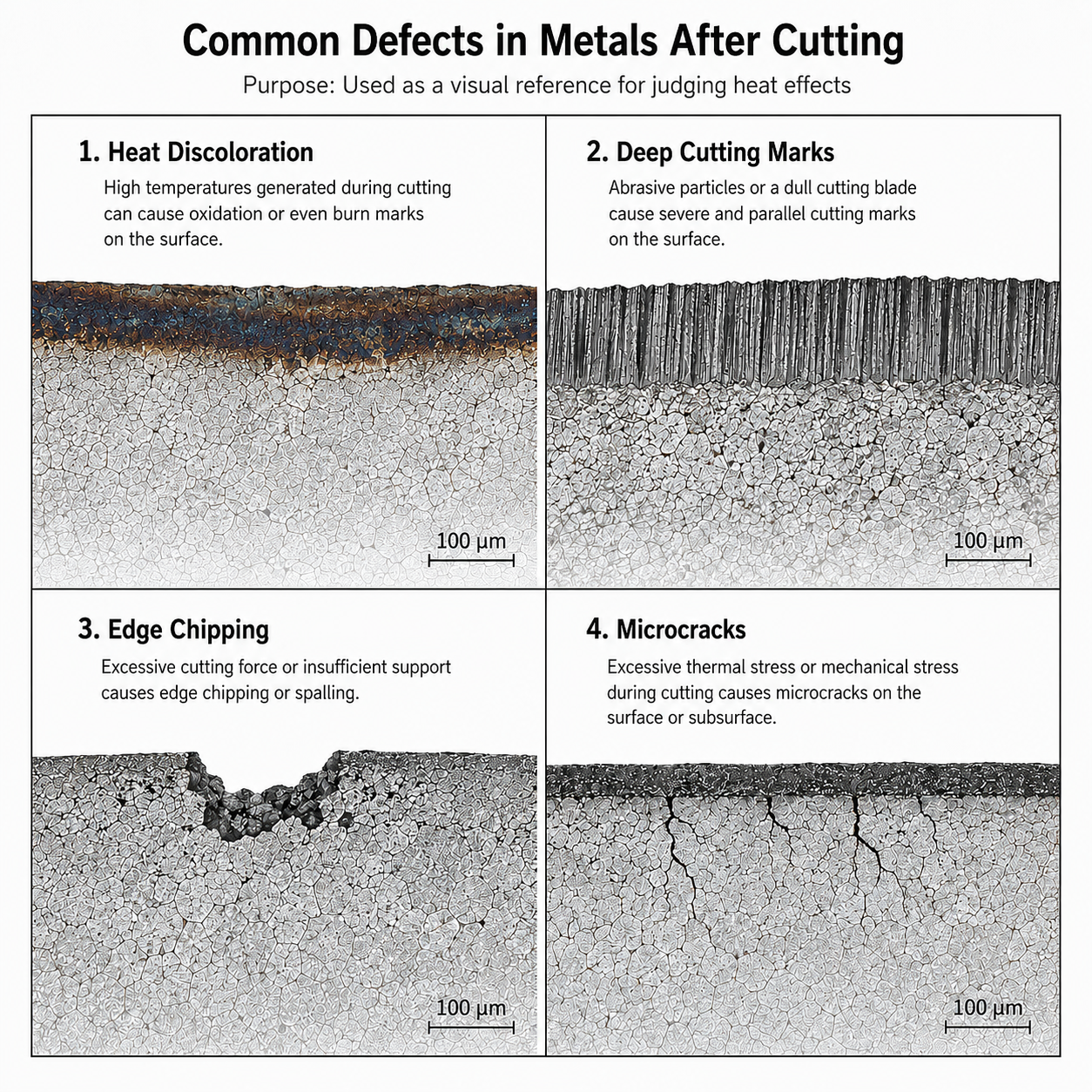

4. How to Determine Whether Sectioning Has Caused Thermal Damage?

After sectioning, a quick inspection should be performed before proceeding to mounting and grinding. Early identification of potential issues can prevent defective cut surfaces from being carried into subsequent preparation processes.

5. Five Control Strategies to Minimize Thermal Damage During Sectioning

5.1 Define the Analysis Objective Before Selecting Sectioning Conditions

Different analysis objectives have different tolerance levels for thermal damage. For general microstructural observation, sectioning damage may be removed through sufficient grinding allowance. However, when examining surface hardened layers, decarburized layers, coating thickness, crack origins, or weld heat-affected zones, more conservative sectioning conditions must be applied.

Recommended practices:

• Mark the observation surface and sampling direction before sectioning.
• Maintain sufficient grinding allowance for critical observation surfaces.
• Avoid cutting directly through the failure origin.
• Perform low-load trial sectioning for heat-sensitive materials.

5.2 Select a Cutting Wheel Suitable for the Material

Material hardness, toughness, and thermal conductivity all influence cutting wheel selection. High-hardness materials require a cutting wheel that maintains cutting efficiency, while soft and ductile materials require conditions that prevent wheel loading and dragging. When the cutting wheel is not suitable for the material, operators often compensate by applying higher pressure, which can increase thermal damage.

5.3 Control Feed Rate and Sectioning Load

The feed rate should be determined based on the actual cutting condition rather than only the material thickness. During stable sectioning, the cutting sound, spark generation, coolant discharge condition, and cutting wheel load should remain consistent. If the cutting sound becomes sharper, sparks suddenly increase, coolant evaporation becomes obvious, or the motor load rises, it indicates that excessive heat may be accumulating in the cutting zone.

In practical applications, the principle of "slow feed rate, stable load, and continuous cooling" should be followed. For large or thick specimens, step-by-step sectioning can be applied to avoid prolonged high-load cutting conditions.

5.4 Ensure Coolant Properly Reaches the Cutting Contact Zone

Coolant flow rate, direction, concentration, and cleanliness must all be properly controlled. If the nozzle is misaligned, coolant may only reach the outer area of the cutting wheel. If chips accumulate in the cutting gap, coolant cannot effectively enter the cutting zone.

On-site inspection checklist:

• Is the nozzle correctly aimed at the contact area between the cutting wheel and specimen?
• Does the coolant effectively remove chips from the cutting gap?
• Does the coolant concentration comply with equipment and consumable recommendations?
• Is the circulating coolant contaminated or containing excessive metal particles?
• Is smoke, vapor, or a burning odor generated during sectioning?

5.5 Perform Low-Magnification Inspection Immediately After Sectioning

Low-magnification inspection after sectioning is one of the most effective practices for reducing rework. If burn marks, cracks, or deep grooves are detected, the sectioning parameters should be adjusted before proceeding to grinding. Excessive thermal damage not only increases grinding time but may also remove the surface layer that is critical for observation.

6. Sectioning Parameter Record Sheet

Establishing a sectioning parameter record makes it easier to trace the causes of rework. The following information should be recorded at minimum:

7. Conclusion: Preventing Thermal Damage Requires Management of Heat, Load, and Support Conditions

Thermal damage during sectioning is not caused by a single factor; it results from the combined effects of cutting wheel selection, feed rate, cooling conditions, specimen clamping, and sampling direction. Simply reducing cutting speed is not sufficient if cutting wheel compatibility, coolant direction, or fixture rigidity are not properly improved.

For metallographic laboratories, the most effective approach is to treat sectioning as a controllable process: define the analysis objective before sectioning, maintain stable cutting load and cooling during sectioning, and immediately inspect the surface and edges afterward. When sectioning damage is controlled within a removable range, subsequent mounting, grinding, polishing, and etching processes can successfully reveal the true microstructure of the material.

References

• ASTM International, ASTM E3 - Standard Guide for Preparation of Metallographic Specimens
• ASTM International, ASTM E407 - Standard Practice for Microetching Metals and Alloys
• ASM Handbook, Volume 9: Metallography and Microstructures
• Vander Voort, G. F., Metallography: Principles and Practice
